DRAINFIX TWIN infiltration rainwater | low traffic

IDEAL FOR: infiltration with high volumes of rainwater in low-traffic areas in private and public areas.
%s


YOUR BENEFITS WITH DRAINFIX TWIN

HIGH STORAGE CAPACITY

= Performance assured
SHOW DETAILS

HIGH STORAGE CAPACITY

  • with combinable elements
    --> double volume
  • large retention volume offers
    considerable room for sudden precipitation

= Performance assured

SPACE-SAVING DESIGN

= Cost savings
SHOW DETAILS

SPACE-SAVING DESIGN

  • reduced time and effort on site and space requirements by 2/3 - compared to conventional gravel trenches
  • area remains completely usable for other purposes:
    --> depending on the installation situation, the load capacity ranges from pedestrian accessible to SLW 30 (car)
  • optimised transport:
    --> 32 elements stacked on a Euro pallet = storage volume of approx. 8.1 m

= Cost savings

FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION

= Performance assured | Quality assured
SHOW DETAILS

FLEXIBLE APPLICATION VIA COMPLETE SYSTEM SOLUTION

  • DRAINFIX TWIN elements

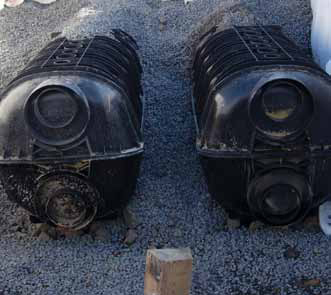

  • end cap:
    with variable connection options via pipe outlet
  • DRAINFIX multifunction shaft:
    for inspection or filtering

= Performance assured | Quality assured


UNIQUE COMBINATION POSSIBILITY

= Design Flexibility | Uniqueness
SHOW DETAILS

UNIQUE COMBINATION POSSIBILITY

  • six different combinations with the two basic elements DRAINFIX TWIN 1 and DRAINFIX TWIN 0
  • the elements are optimally combined according to soil conditions and requirements

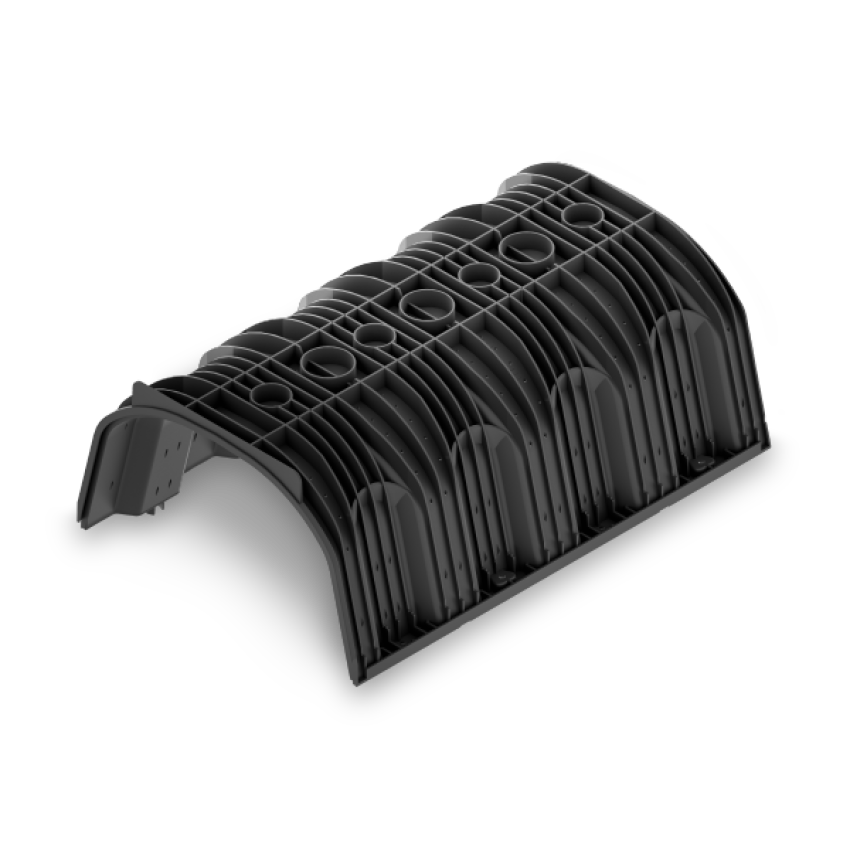

  • DRAINFIX TWIN element 1:
    with drainage holes for retention and infiltration
    --> application for high and medium ground water level
  • DRAINFIX TWIN element 0:
    without drainage holes
    --> use under sealed surfaces or for installation without special gravel packing

= Design Flexibility | Uniqueness

QUICK INSTALLATION & EASY HANDLING ON SITE

= Time savings | Cost savings
SHOW DETAILS

QUICK INSTALLATION & EASY HANDLING ON SITE

  • DRAINFIX TWIN elements made of PP recycled composite
    --> low weight
  • design enables easy joining of the elements
    --> modular system
  • expandable as needed
  • flexible installation arrangement due to variable combination

= Time savings | Cost savings

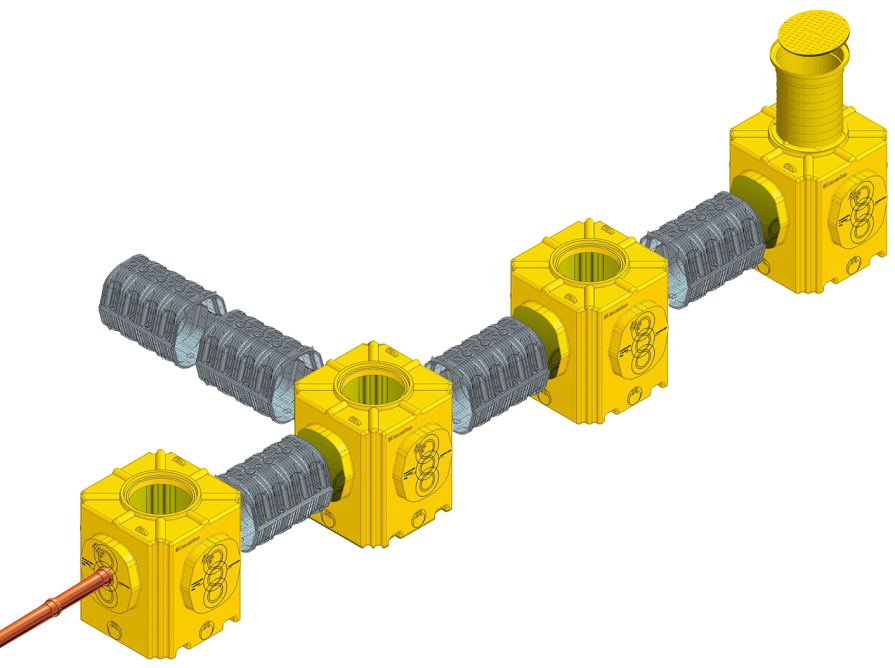

THE SYSTEM IN DETAIL

%s
Shaft made of PE

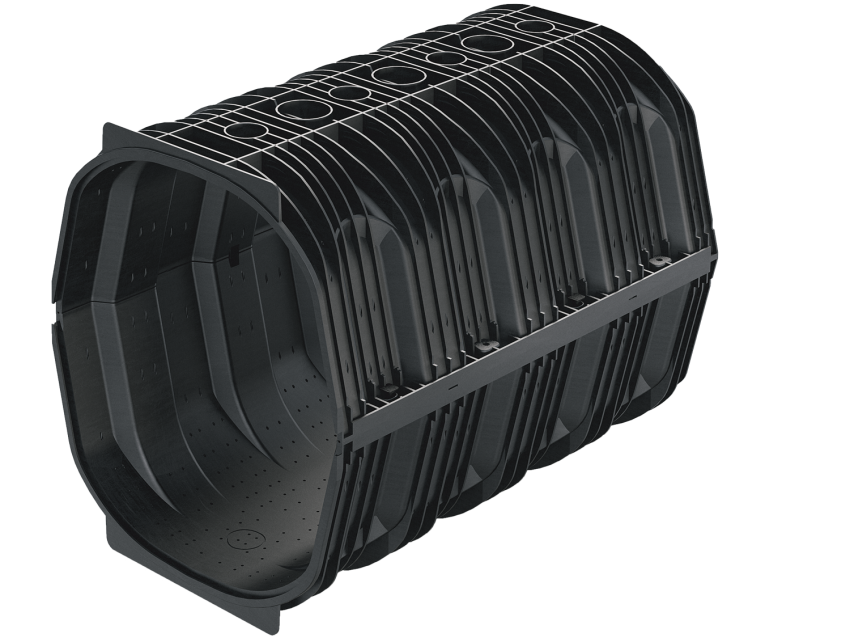

DRAINFIX®TWIN 1/1, made of PP, with drainage perforations for infiltration and retention of surface water
Optional shaft heightening
Cover in class A 15, made of PE, for plastic shaft or shaft heightening. Alternatively, a ductile iron cover with class D 400 can be used.
Pipe connection for inlet and outlet in different sizes
