FASERFIX BIG BL drainage | reinforced concrete part

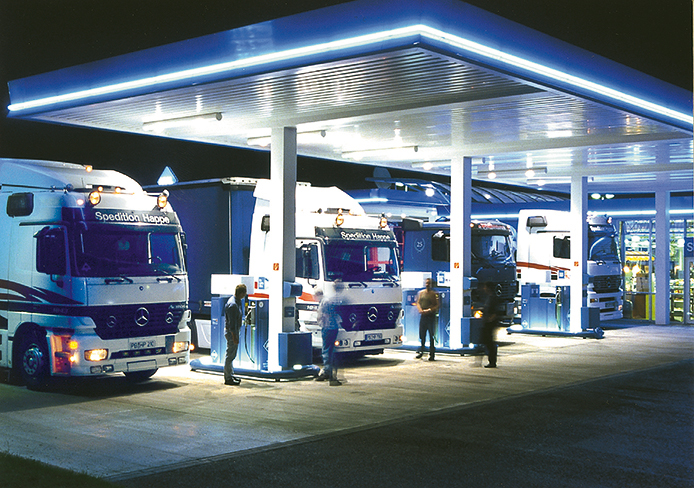

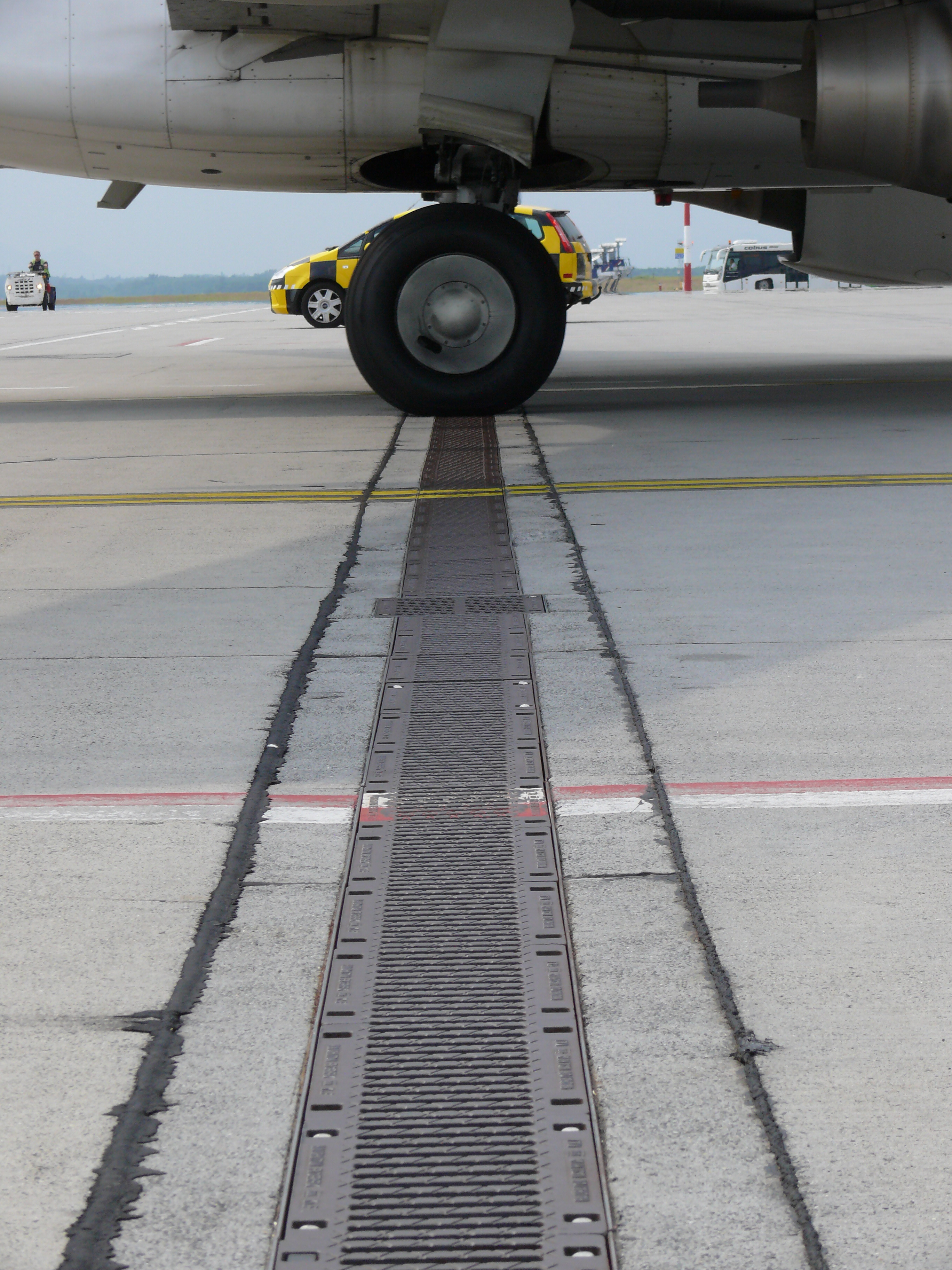

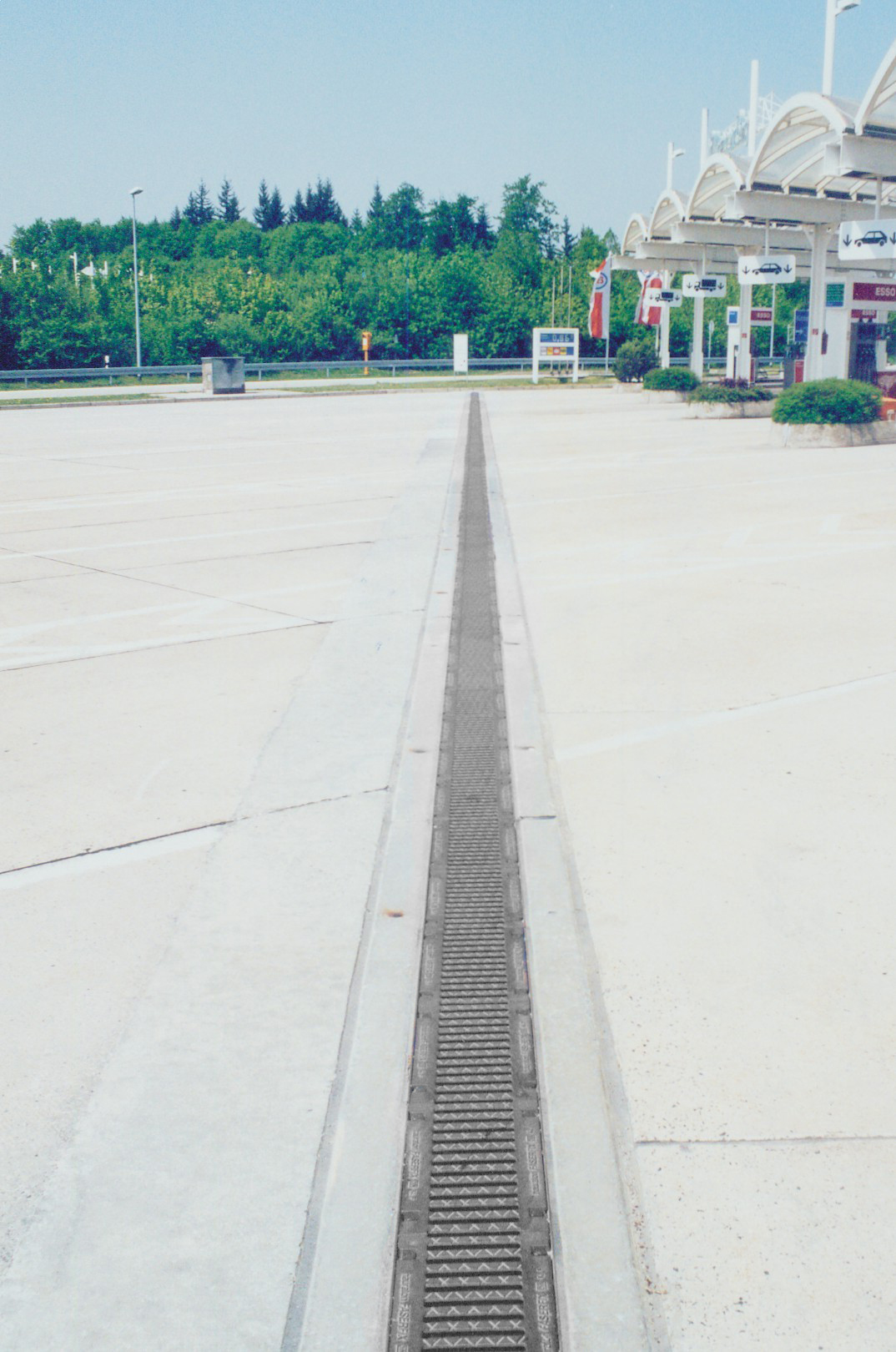

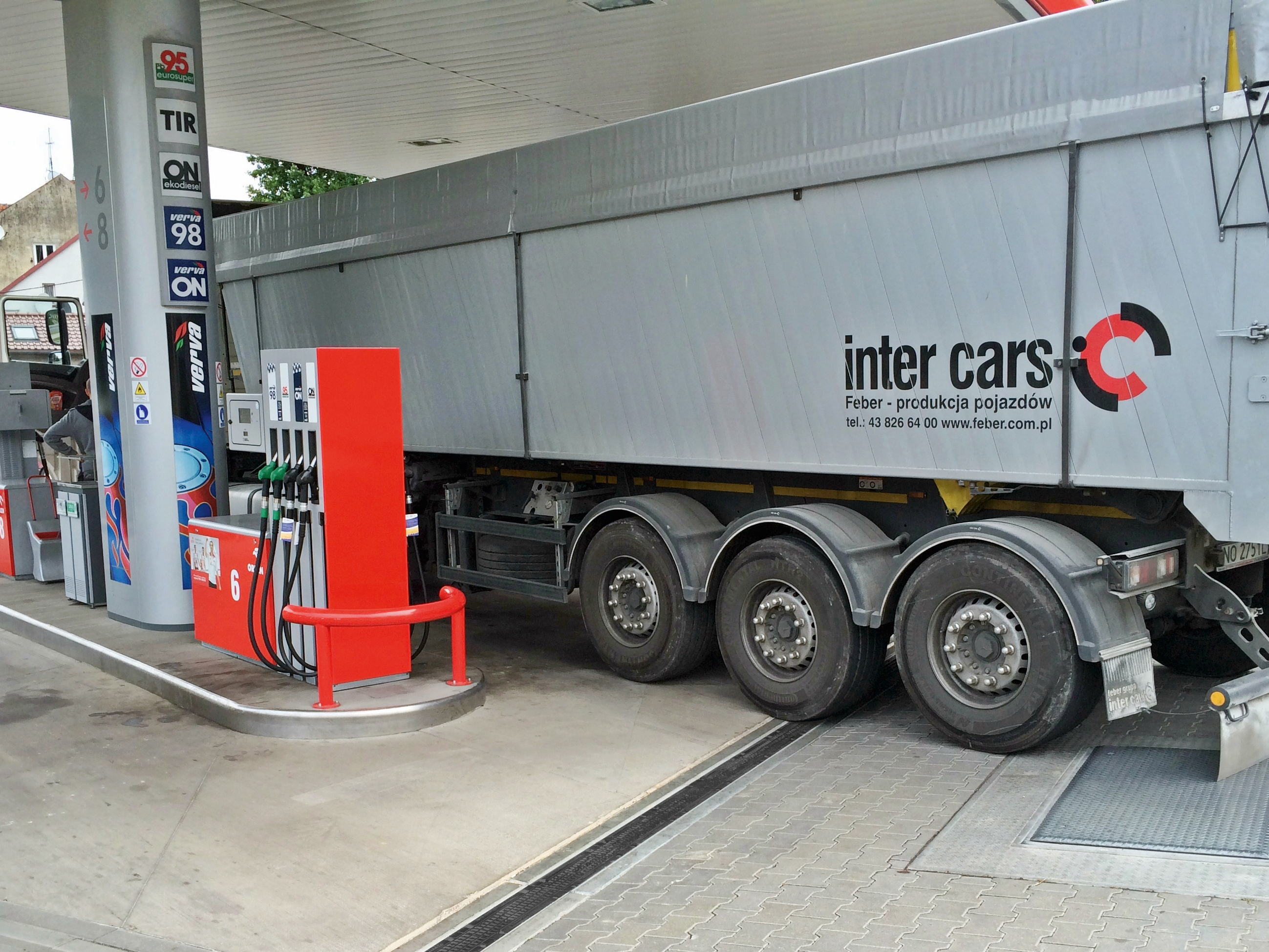

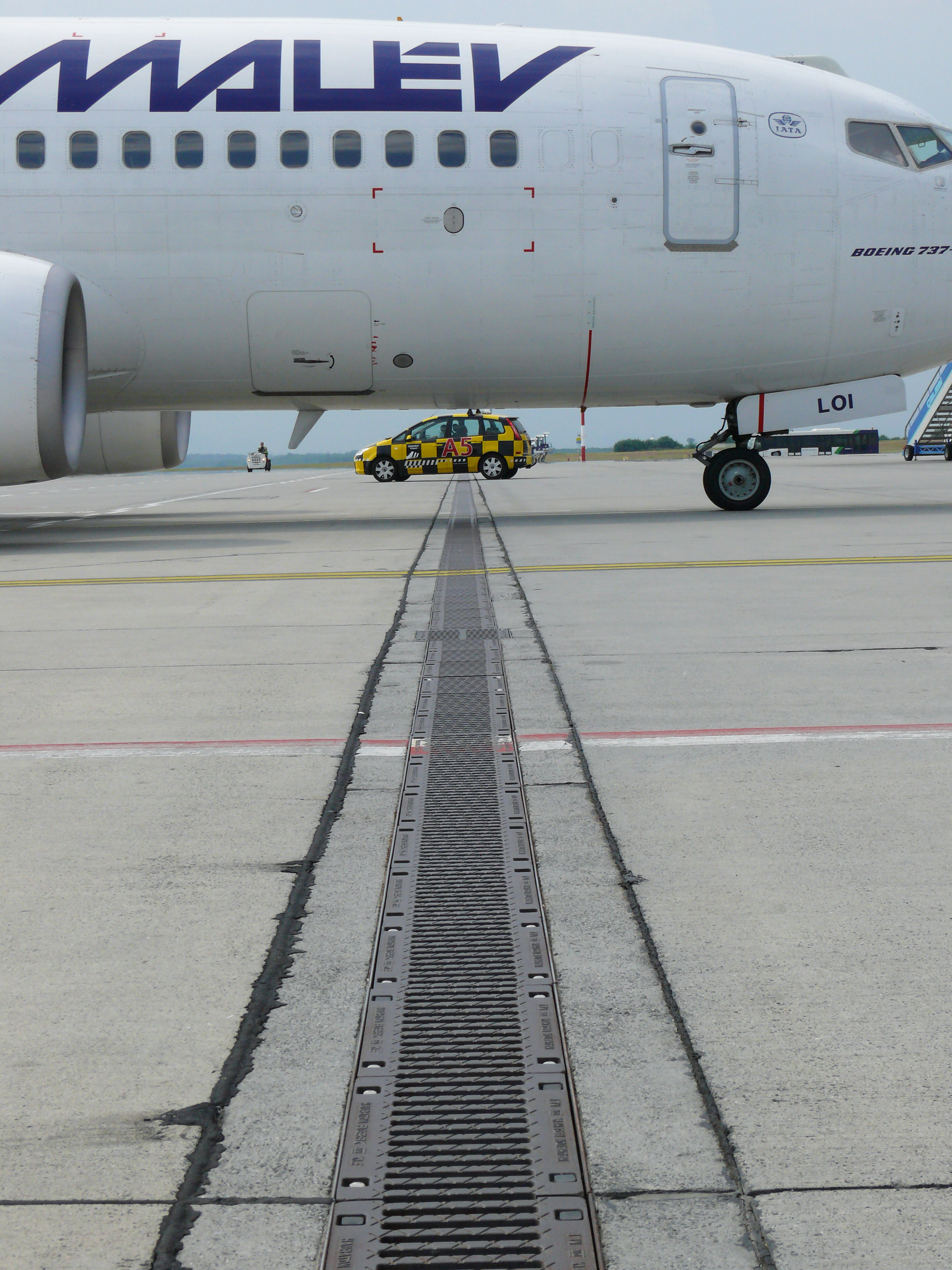

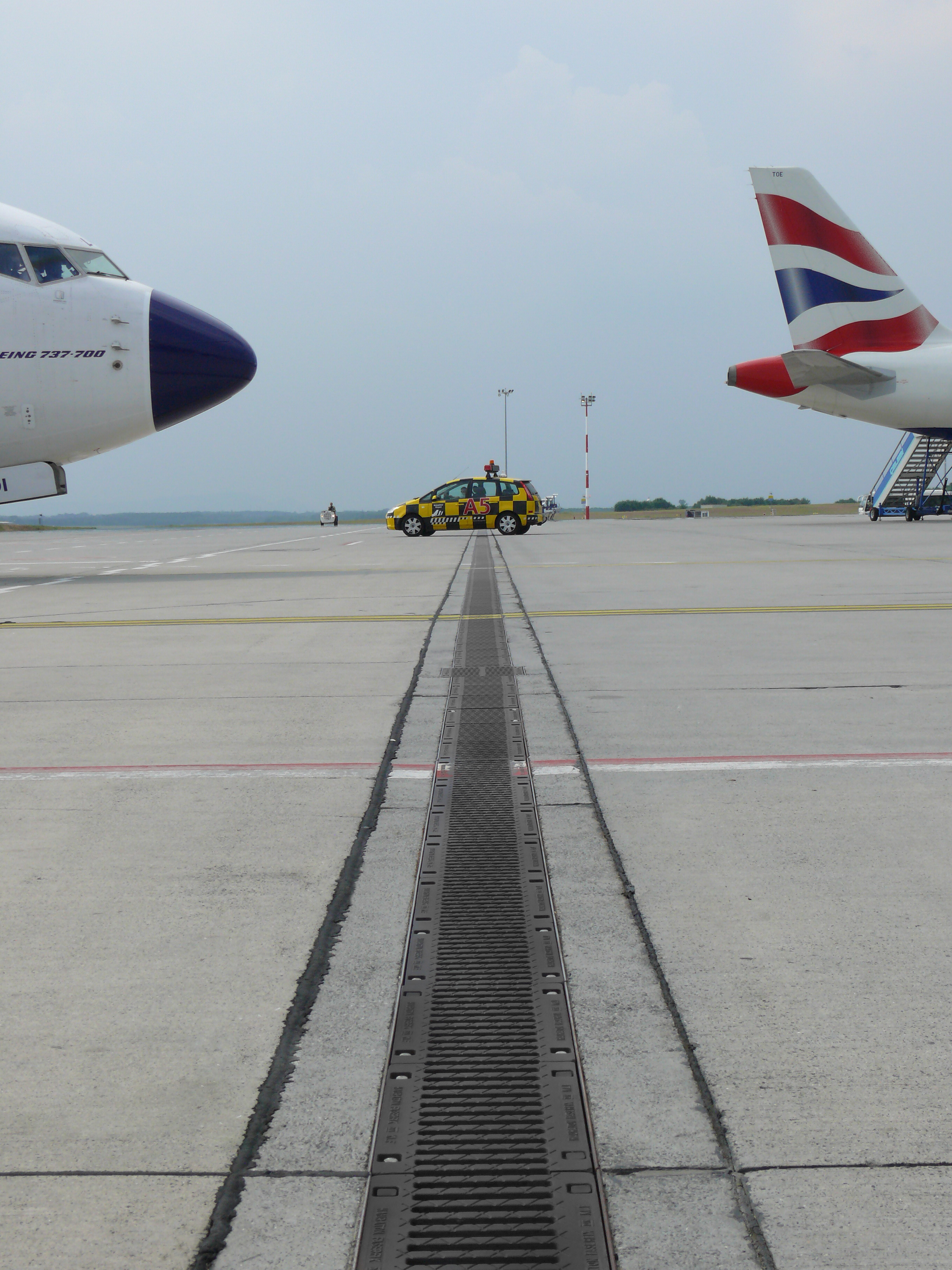

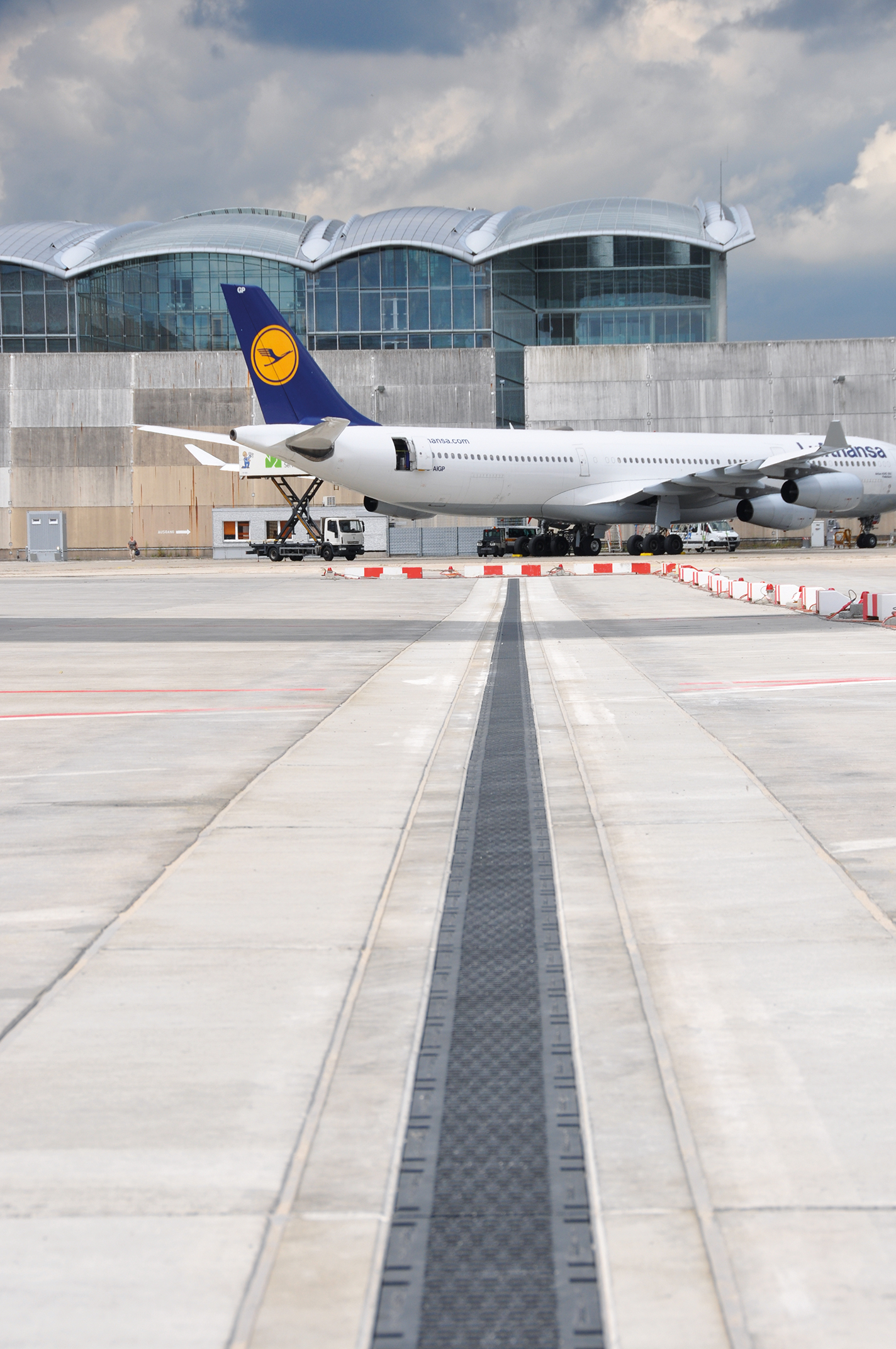

IDEAL FOR: extreme loads in practically all concrete road surfaces, aircraft operating areas, port facilities/container terminals, industrial and logistics areas, heavy-duty traffic areas and lorry parks.
YOUR BENEFITS WITH FASERFIX BIG BL
PREFABRICATED REINFORCED CONCRETE PART TYPE I ACCORDING TO EN 1433
- robust, ready-to-use pre-cast reinforced concrete channel body
- no formwork, reinforcement and in-situ concrete work required
= Cost savings
CHANNEL IN 1 AND 4 M LENGTHS
- high laying performance
- significant time savings when a certain tightness is required due to reduced number of connections
= Cost savings | Time savings
HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK
- 40 mm x 40 mm angle housing and inlaying grating
- 16 fixing points for gratings per metre (incl. 8 times with optional bolting)
- 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool (if unbolted), a screwdriver is enough
= Cost savings | Quality assured
HIGH STABILITY
- maximum lateral stability through extra thick walls with static load capacity compared to many competitors‘ products for additional security in extreme situations
= Performance assured

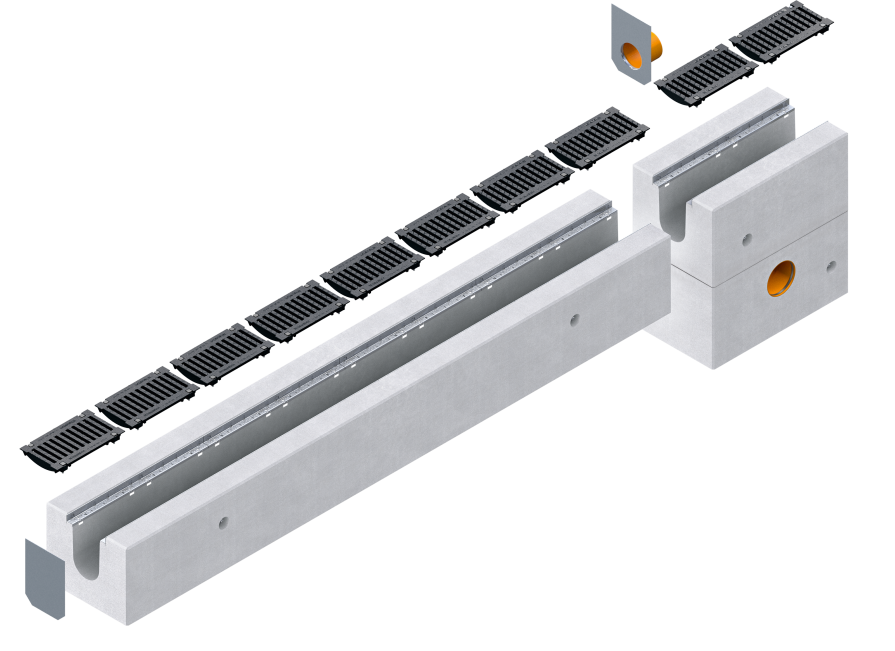

THE SYSTEM IN DETAIL
End cap closed

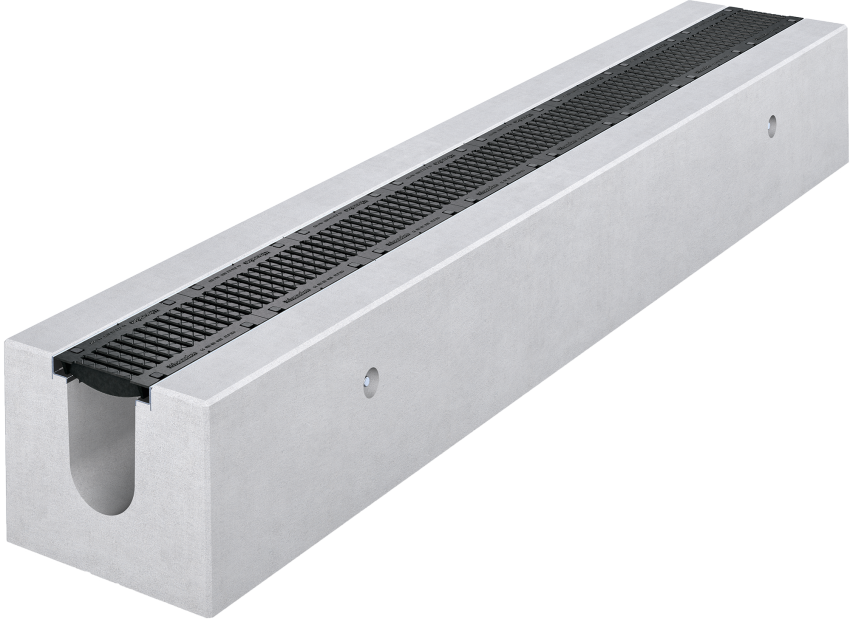

Precast reinforced concrete with steel, cast iron or stainless steel frames. 16-fold fixing possibilty through boltless-locking system SIDE-LOCK and additional fixing possibility. Length 1 or 4 m
Grating made of ductile iron EN-GJS-500-7, SW 20, black, 8-fold bolted and 8-fold SIDE-LOCK per metre
Trash box with integrated PVC-U socket and galvanised mud bucket
End cap with PVC-U socket
