FASERFIX SUPER drainage system | heavy traffic loads

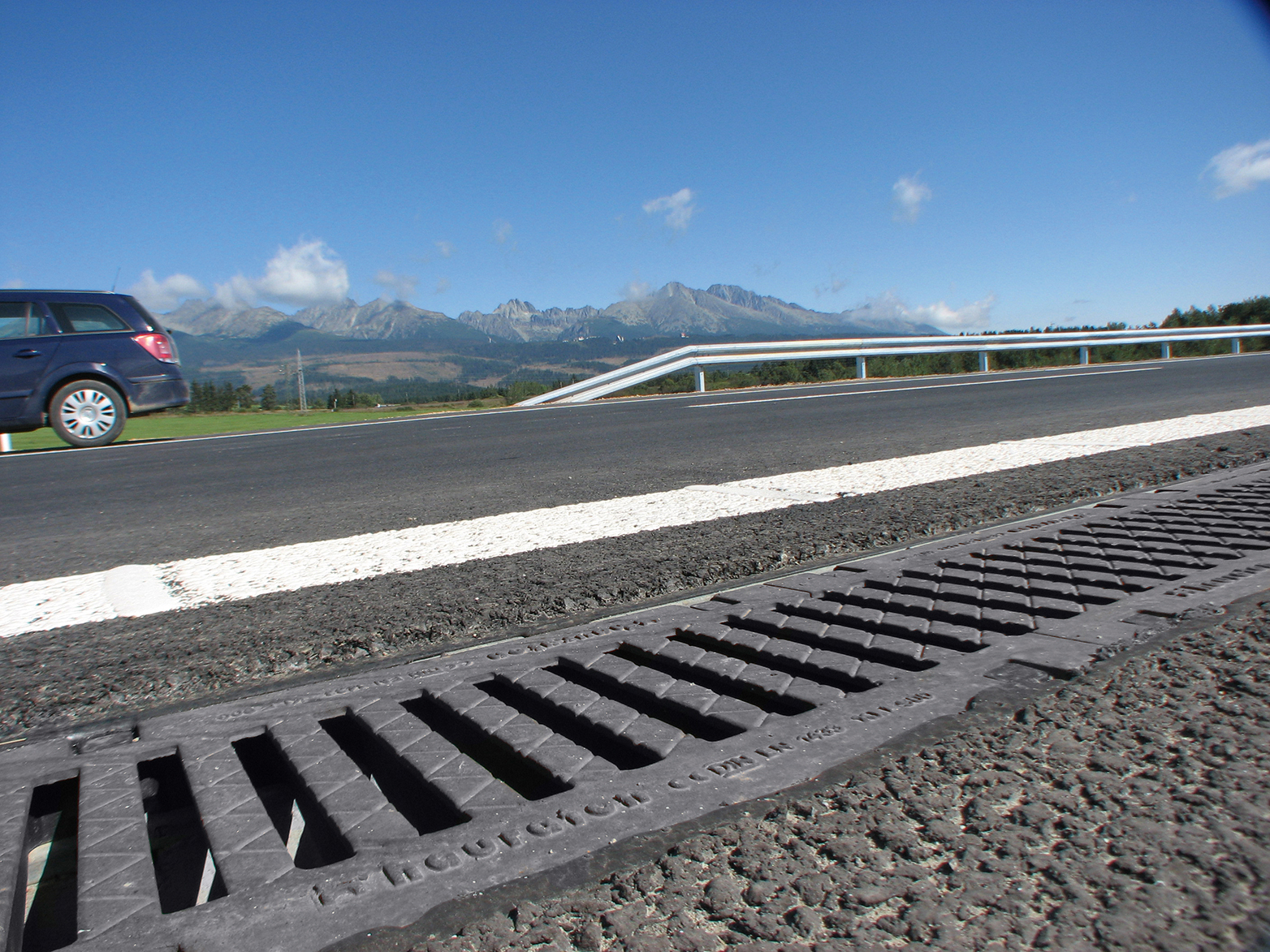

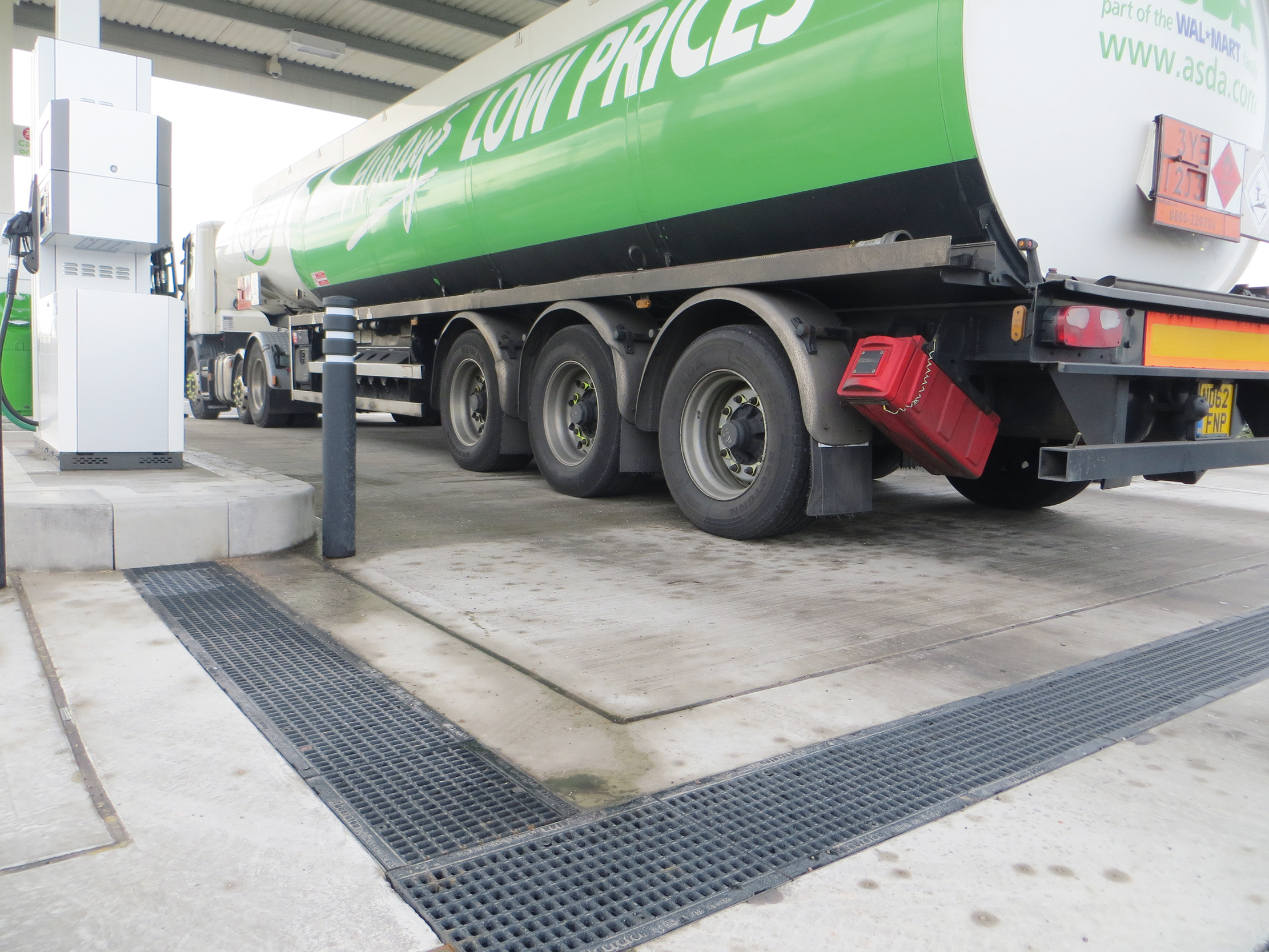

IDEAL FOR: applications with heavy loads and high dynamic forces up to class F 900, such as traffic areas for industry, roads and petrol stations.
%s


YOUR BENEFITS WITH FASERFIX SUPER

HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK

= Quality assured | Cost savings
SHOW DETAILS

HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK

  • 40 mm x 40 mm angle housing and inlaying grating
  • extremely stable connection between steel angle housing and concrete channel body
  • 16 fixing points for gratings per metre (incl. 8 times with optional bolting)
  • extra protection against lateral movement
  • 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
  • replace and insert the grating without any special tool (if unbolted), a screwdriver is enough
= Quality assured | Cost savings

HIGH-TECH MATERIAL

= Quality assured | Performance assured
SHOW DETAILS

HIGH-TECH MATERIAL

  • „Made in Germany“
  • maximum stability through fibre - reinforced concrete (polypropylene fibres) with low weight
  • adheres well to foundation concrete (same coefficient with regard to thermal expansion)
  • installation without grating possible
  • fire resistance class A1 (not flammable) according to DIN 4102
= Quality assured | Performance assured


HIGH STABILITY

= Performance assured
SHOW DETAILS

HIGH STABILITY

  • maximum lateral stability through extra thick walls compared to many competitors‘ products for additional security in extreme situations
  • installation for asphalted surface up to class E 600 without concrete stretcher
= Performance assured

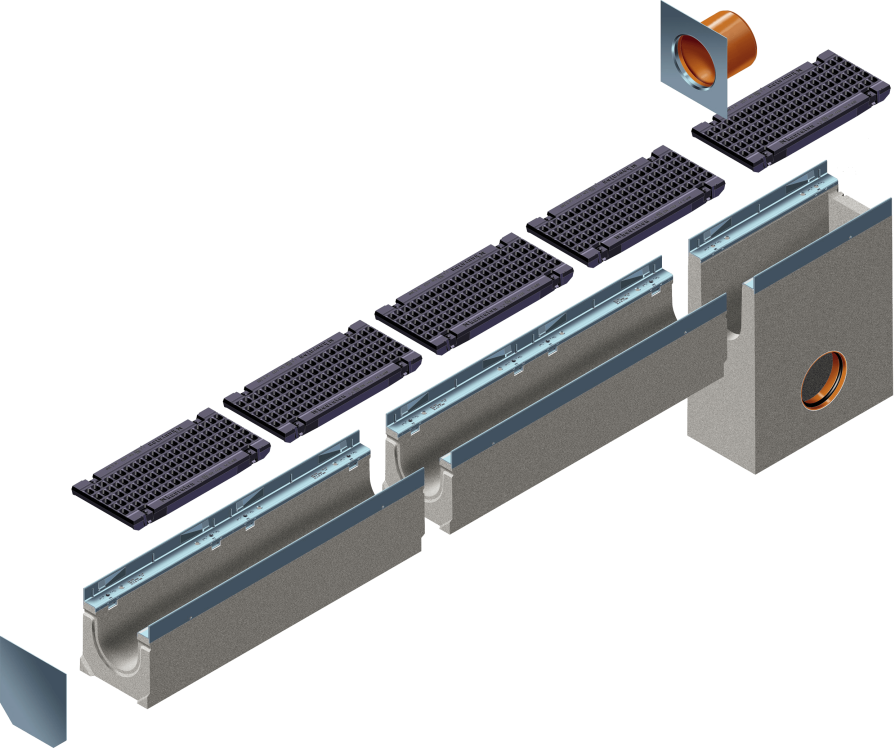

THE SYSTEM IN DETAIL

%s

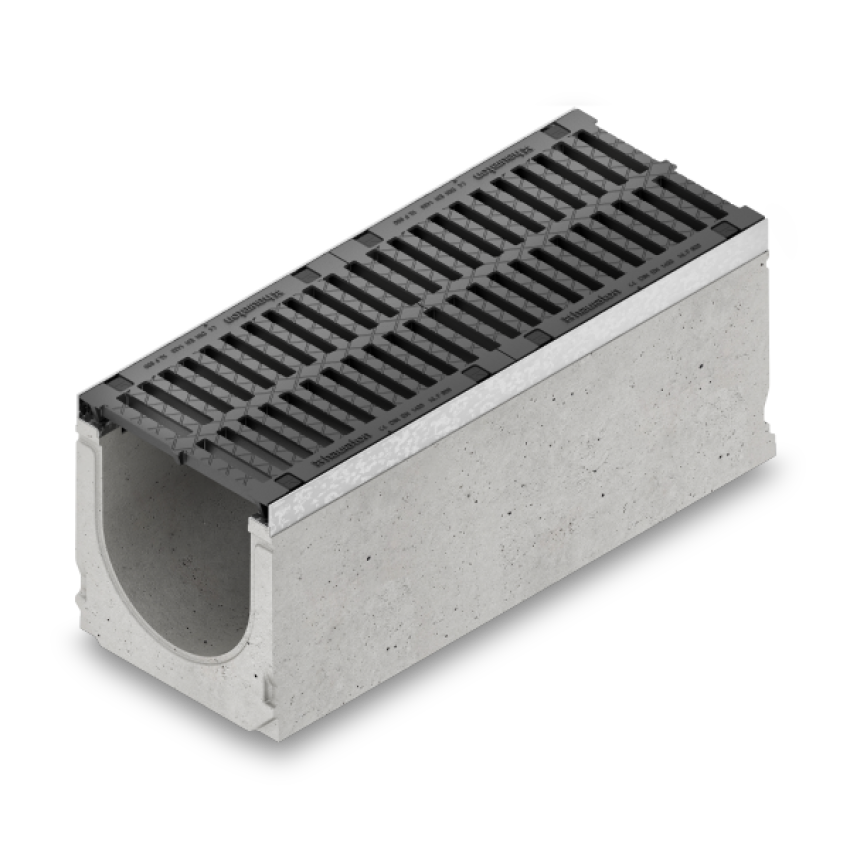

Channels made of fibre reinforced concrete, according DIN V 19580 / EN 1433, CE-conform with safety joint, steel angle housings and boltless locking system SIDE-LOCK with groove and tongue connection for exact installation
numerous grating options, for example GUGI-Ductile iron mesh gratings
Trash box with 3-sided pipe connection possibilities, integrated PVC-U socket DN/OD 110 with removable mud bucket
End caps with outlet
End caps without outlet

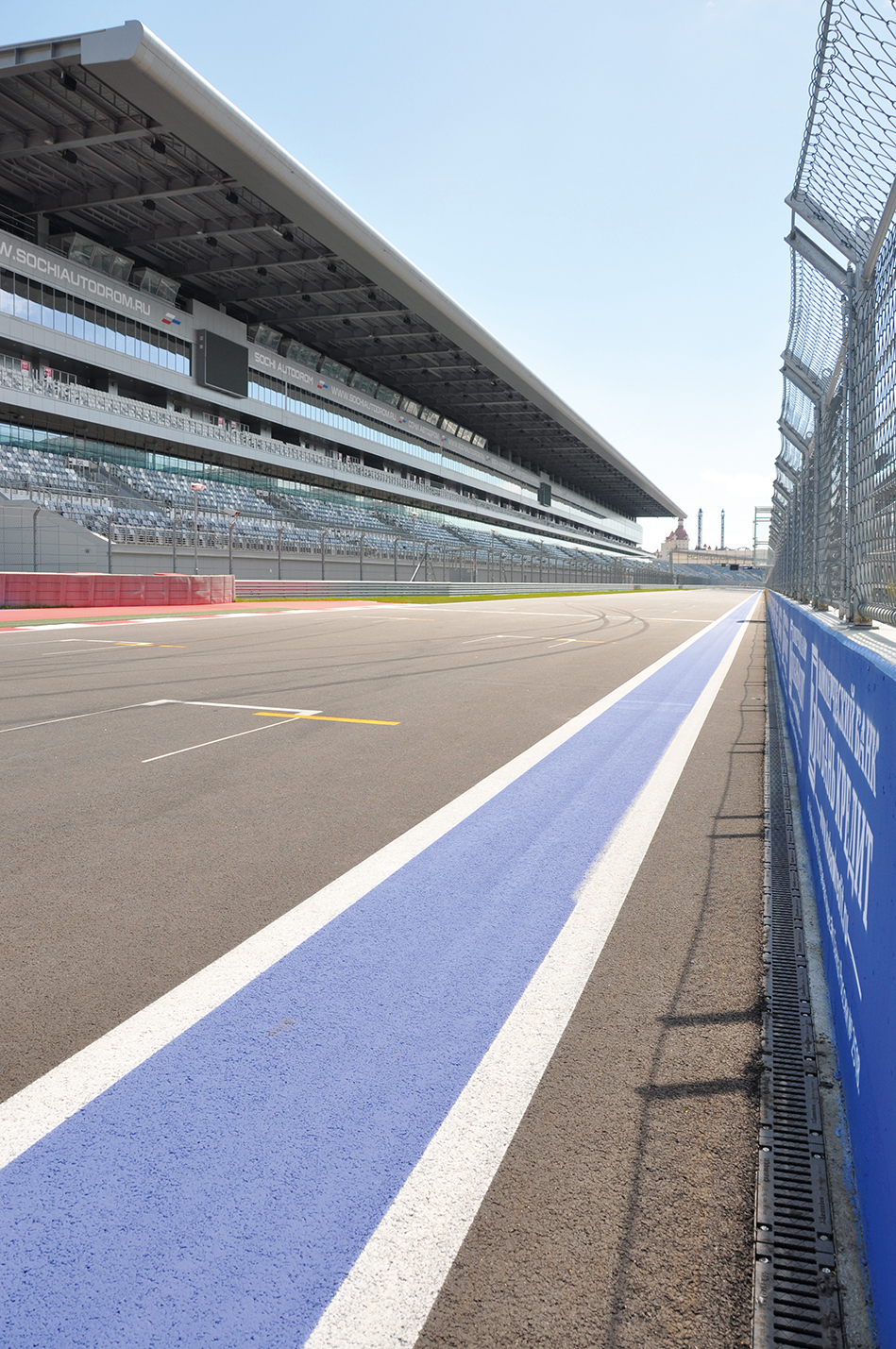

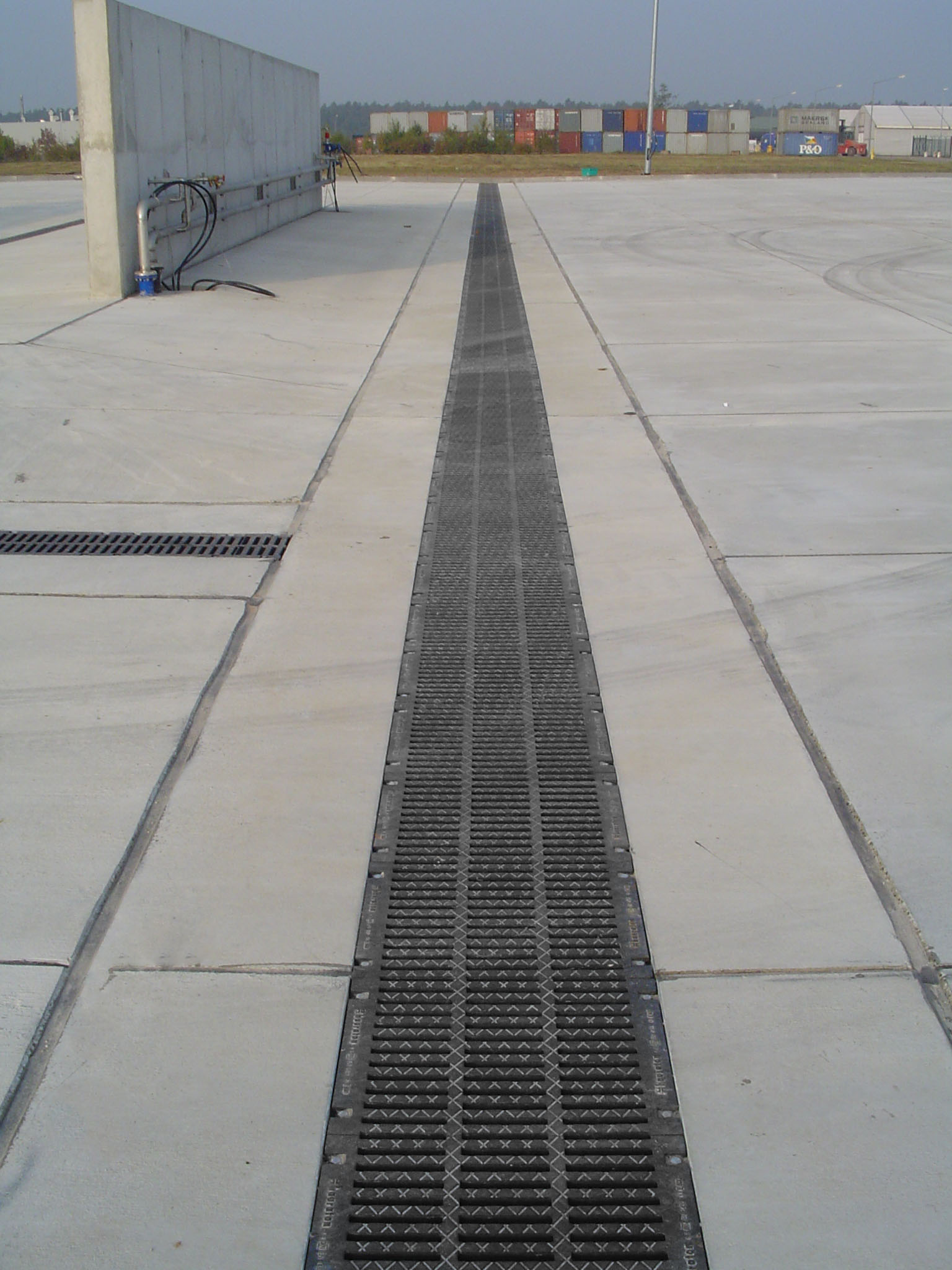

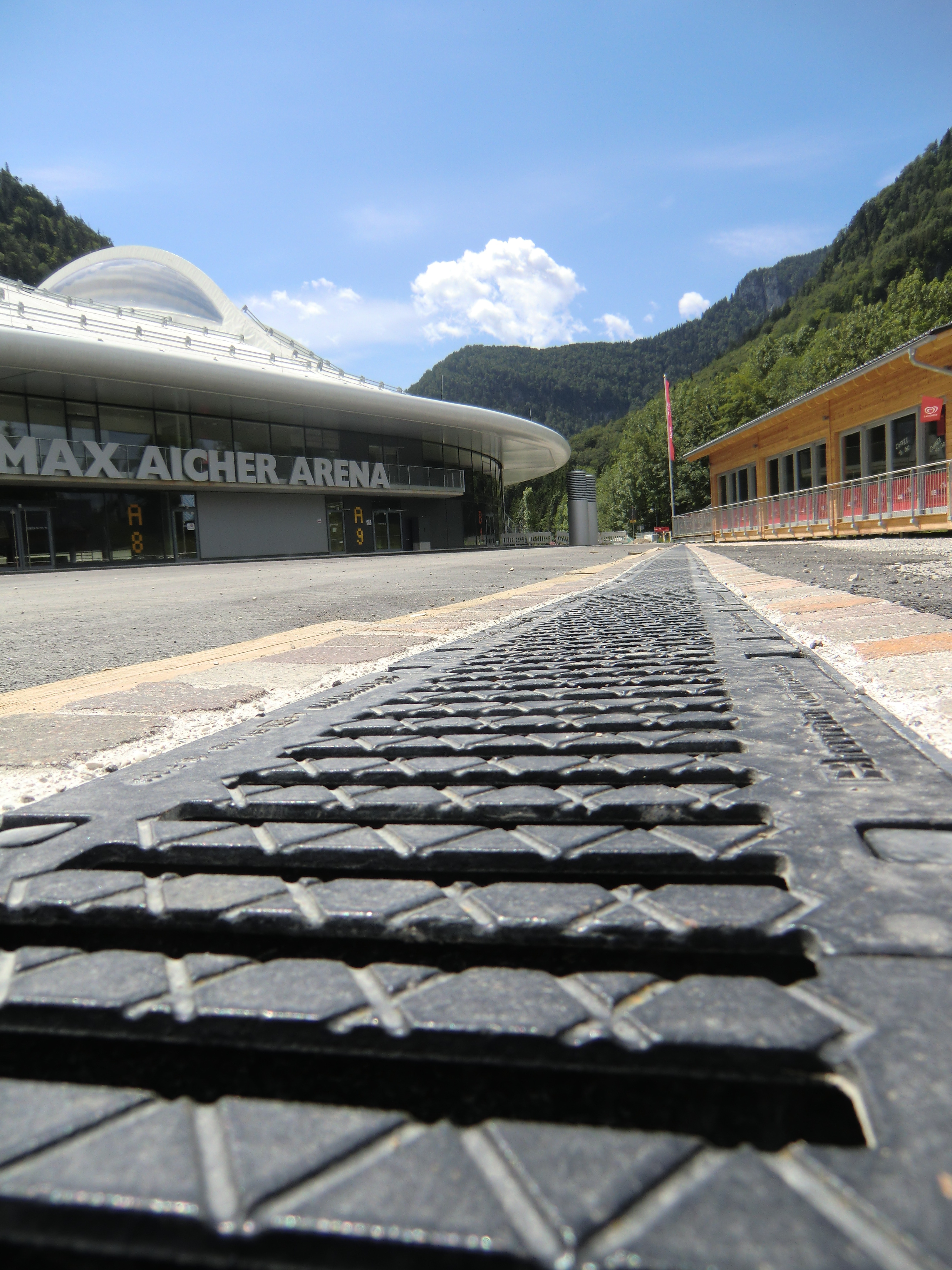

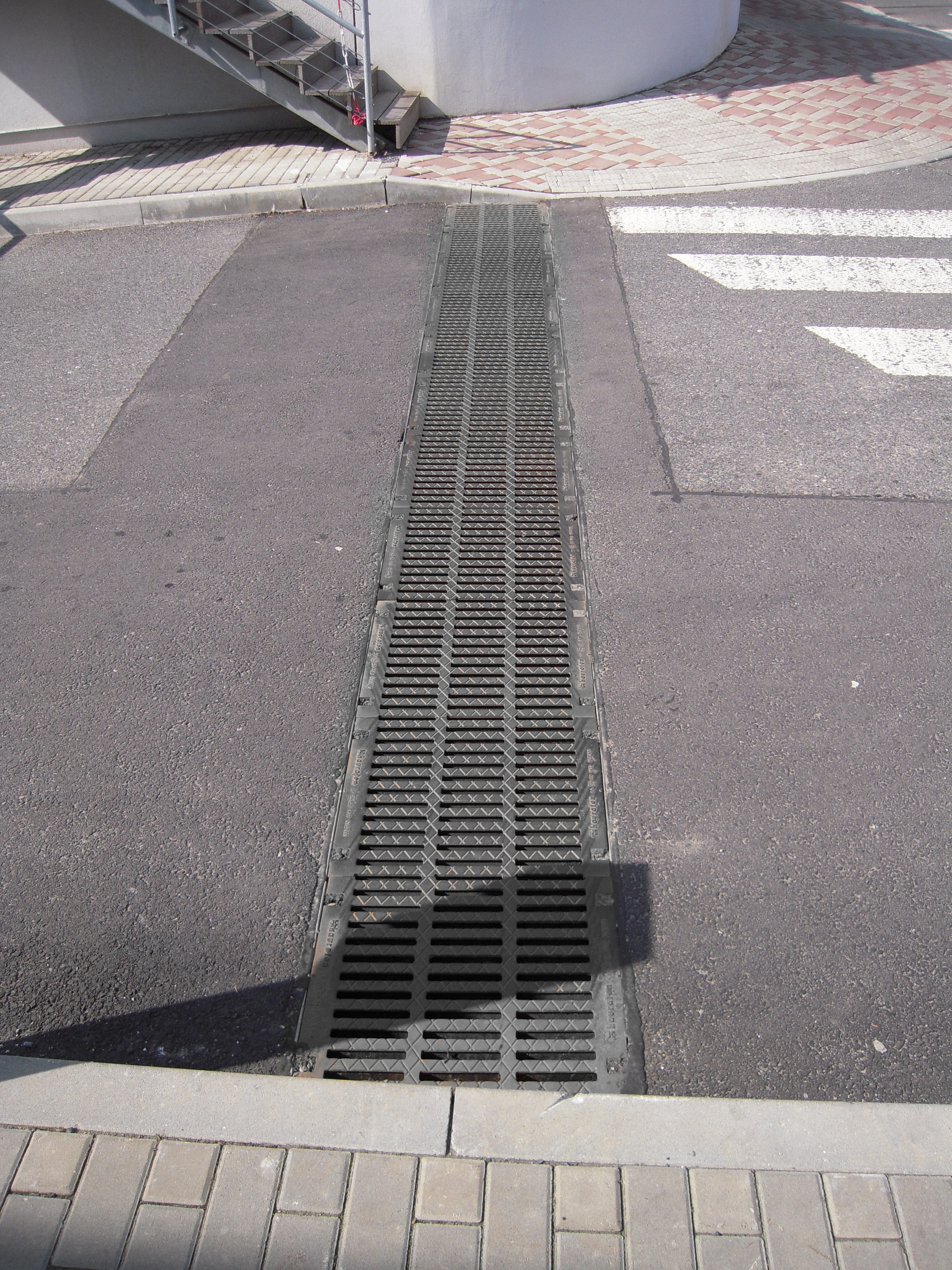

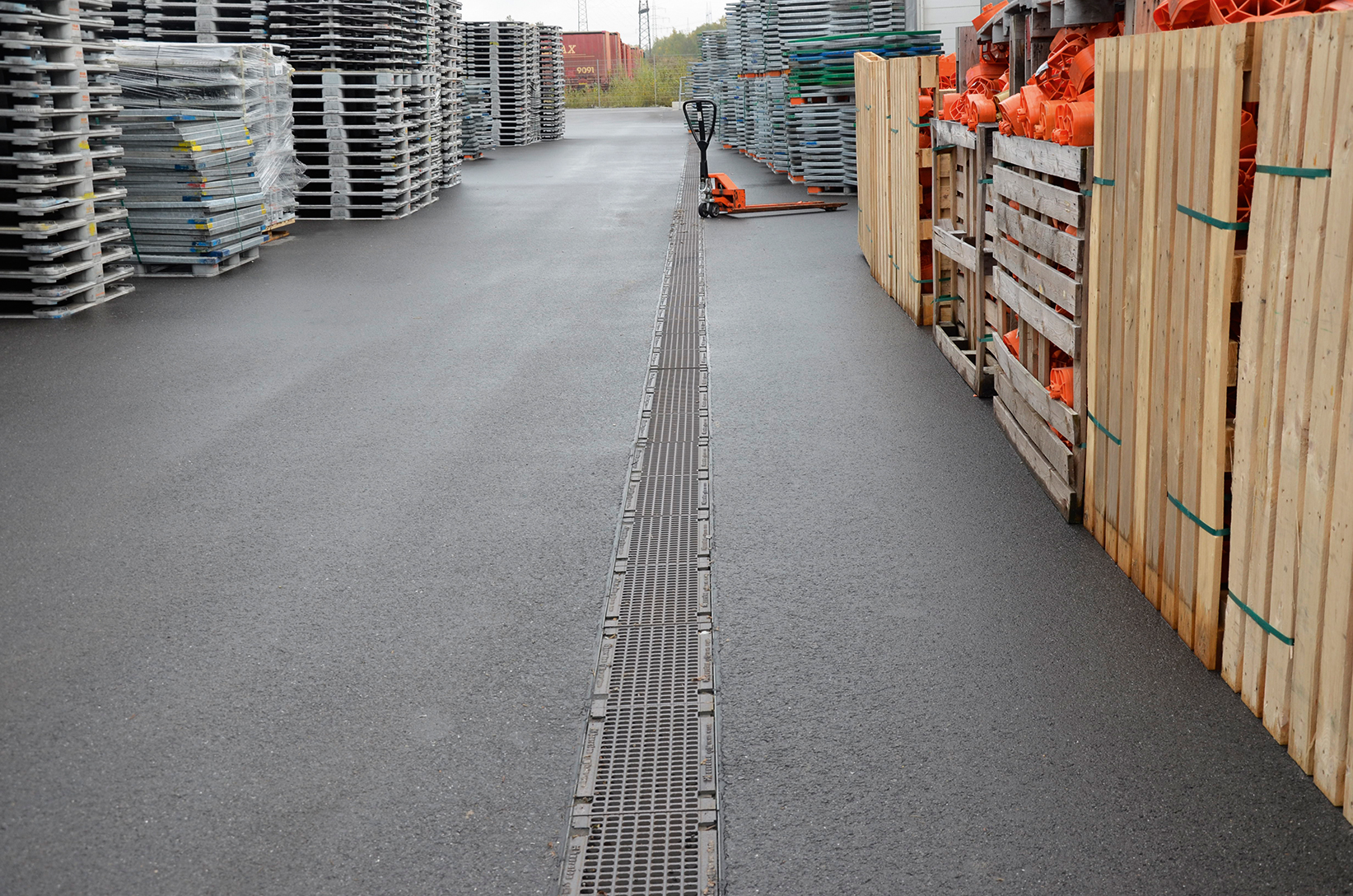

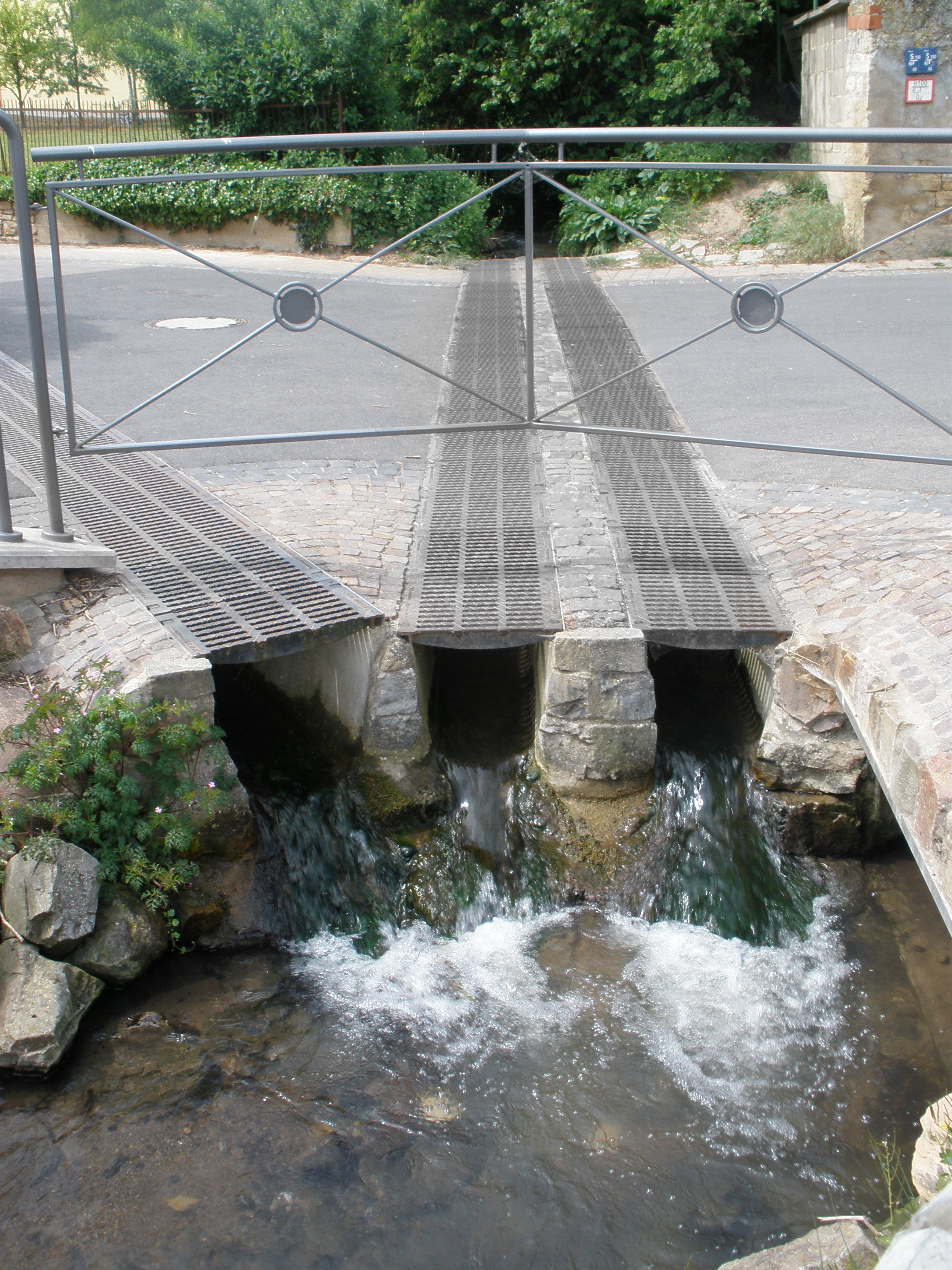

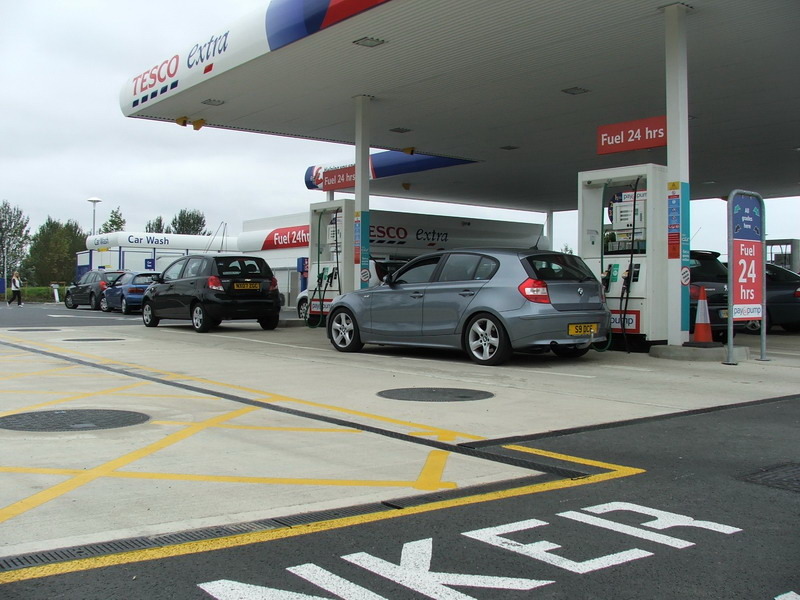

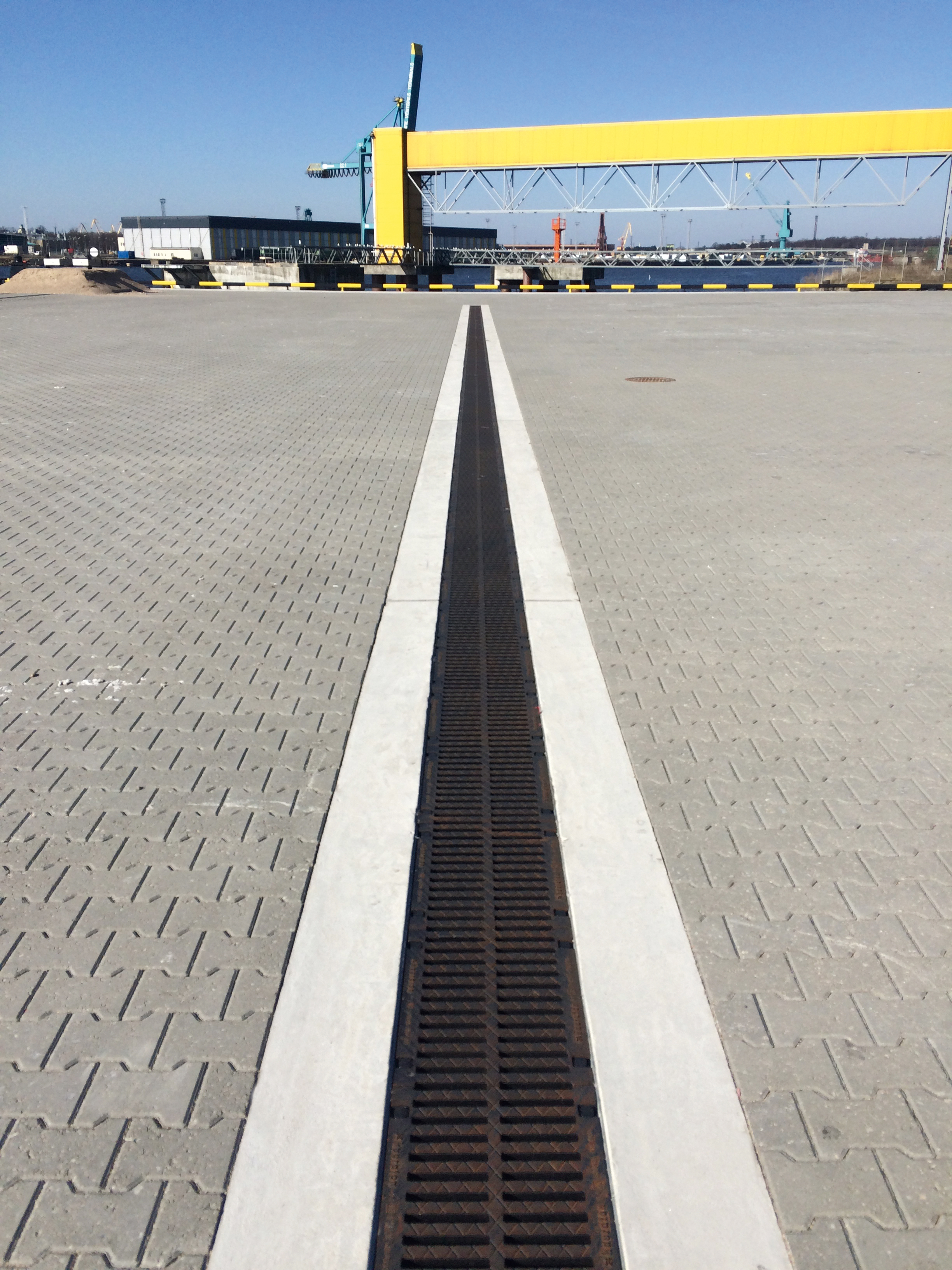

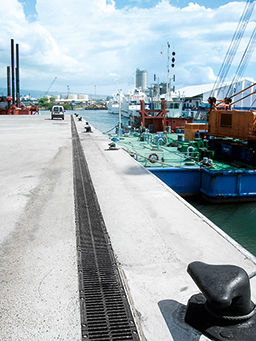

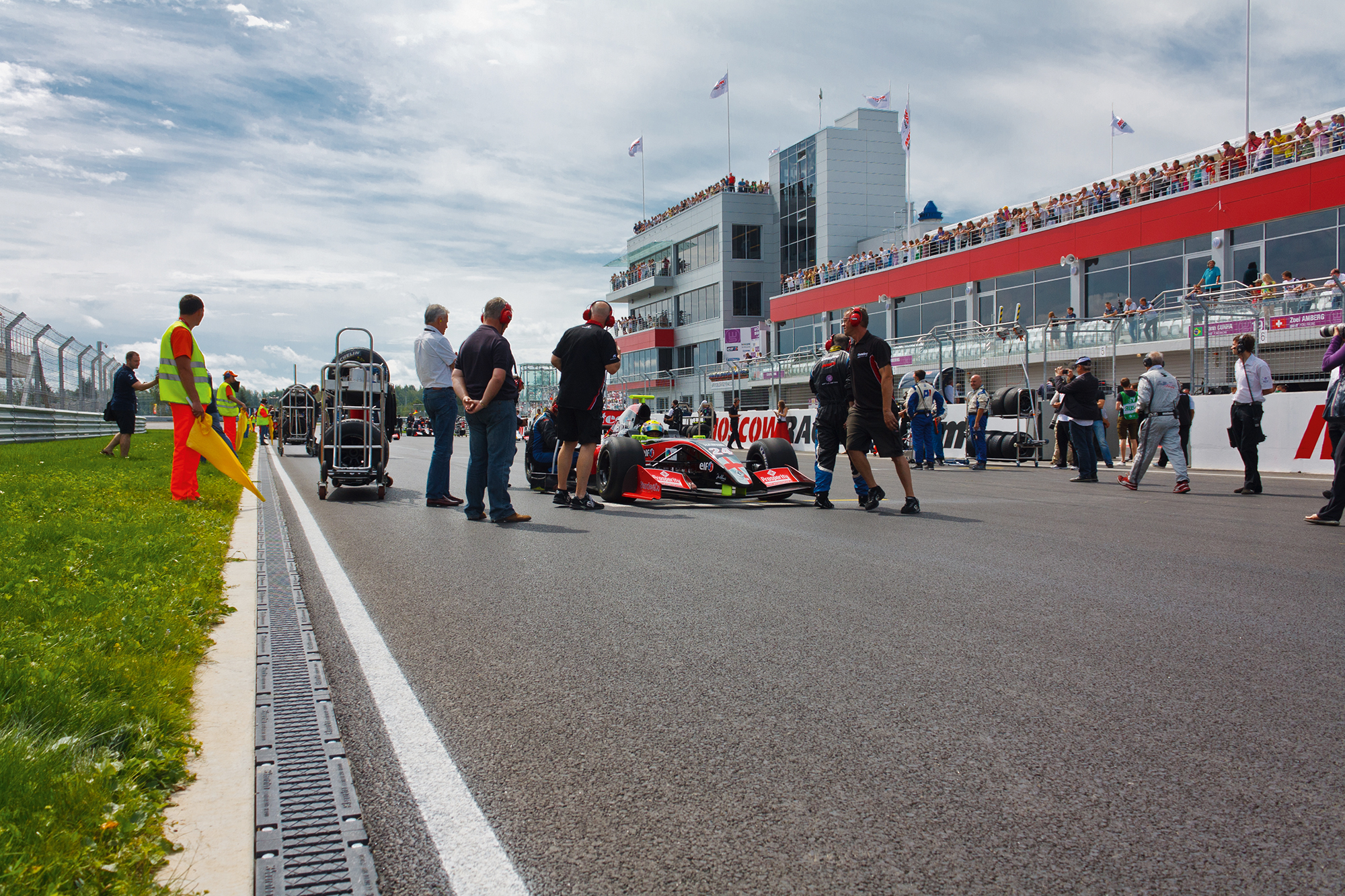

FASERFIX SUPER Applications
