FASERFIX TRAFFIC | Drainage system for extreme conditions with high capacity
IDEAL FOR: F 900 load environments subject to ultra heavy duty traffic imposing extreme dynamic forces.
YOUR BENEFITS WITH FASERFIX®TRAFFIC
STRONG, STABLE, SAFE & SECURE
- load tested F 900 (EN 1433)
- monolithic channel installation with retained grating design
- elevated grating structure in durable spheroidal ductile iron GJS 500-7
- grating flange for strong key to concrete encasement
- thick channel wall dimensions for superior resistance to lateral / dynamamic forces and ultra-heavy-duty loads
- tapered channel body design for added stability when installed
= Performance assured | Longevity
HIGH RESISTANCE
- fibre-reinforced concrete for increased impact and wear resistance
- material resistance to frost and salts
- meets concrete exposure classes (XF4, XA3, XS3) as classified within DIN EN 206-1
- class 1A (non flammable)fire rating (DN 4102)
- high resistance to extreme climate temperatures and UV light
= Performance assured | Longevity
VARIETY OF OPTIONS AND ACCESSORIES
- channel size 150 mm wide
- GUGI-mesh grating design up to F 900 loading
- range of access / outlet boxes and accessories
- configured as constant-depth or stepped-fall
= Design Flexibility
THE SYSTEM IN DETAIL

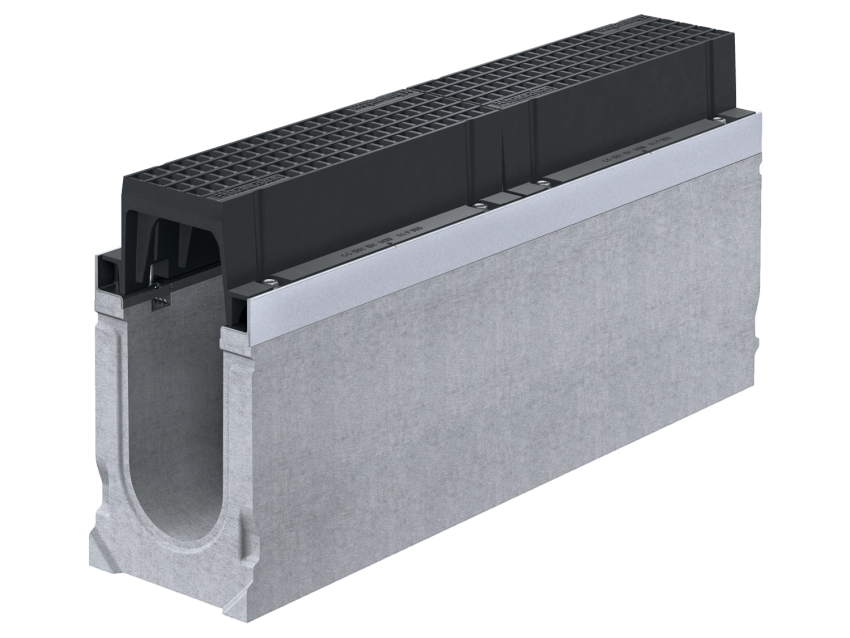

FASERFIX TRAFFIC GUGIBLOC channel made of fibre reinforced concret and robust grating made of spherodial ductile iron
Trash box made of fibre reinforced concret with access cover to pipe connection, boltless locking system SIDE-LOCK and GUGI-Ductile iron mesh grating
End cap closed
