RECYFIX TRAFFIC light & robust drainage | high traffic
IDEAL FOR: E 600 load environments subject to heave-duty traffic e.g. service yards, industrial areas, parking areas.
YOUR BENEFITS WITH RECYFIX®TRAFFIC
STRONG, STABLE, SAFE & SECURE
- load tested to E 600 according
to EN 1433 - monolithic channel installation
with retained grating design - elevated grating structure
with flange for strong key
to concrete encasement - structural ribbing for superior
resistance to dynamic forces
and heavy duty loads
= Performance assured | Longevity
HIGH RESISTANCE
- high resistance against frost
and salts - 0 % water absorbation
(non polar) - high level corrision resistance
to a range of chemicals - UV stable (composite channel
body with > 2 % carbon black
added) - suitable for climate temperatures
from - 30 °C to + 80 °C
and beyond
= Performance assured | Longevity
VARIETY OF OPTIONS AND ACCESSORIES
- channel sizes 200 and 300 m wide
- GUGI-mesh grating design up to E 600 loading
- range of access / outlet boxes and accessories
- configured as constant-depth or stepped-fall
- pre-formed pipe-connections for added flexibility
= Design Flexibility
HIGH-GRADE MATERIALS
- RECYFIX - modified PP composite for strength, durability, flexibilty
and impact resistance. - grating in durable spheroidal ductile iron GJS 500-7
- channel body from 100 % recycled material; 100 % recyclable
(environmentally friendly) - smooth inner surface for superior flow characteristics
- PP channel body can be cut, drilled and ´worked´ easily on site
= Quality assured | Performance assured

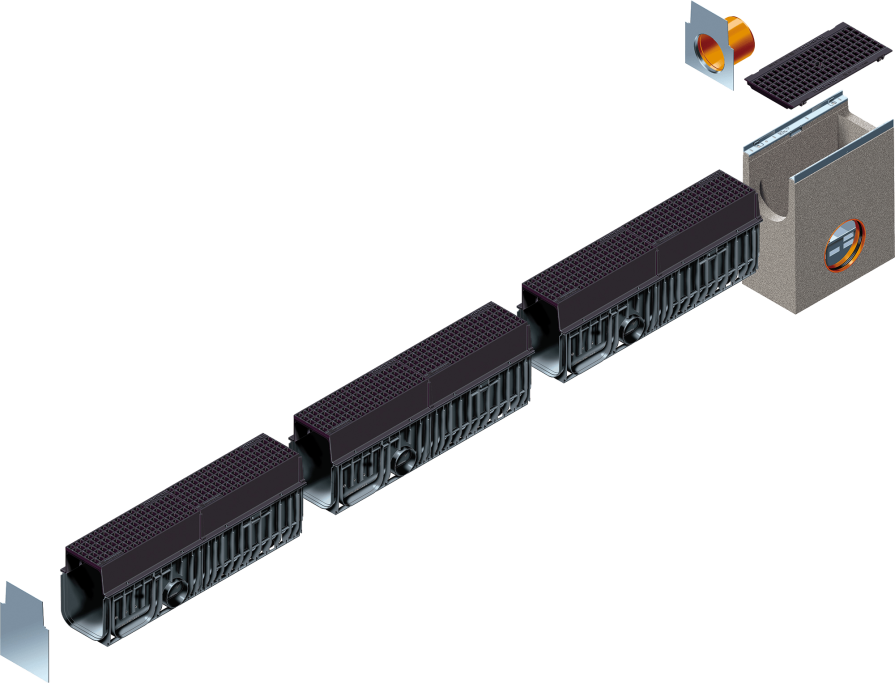

THE SYSTEM IN DETAIL

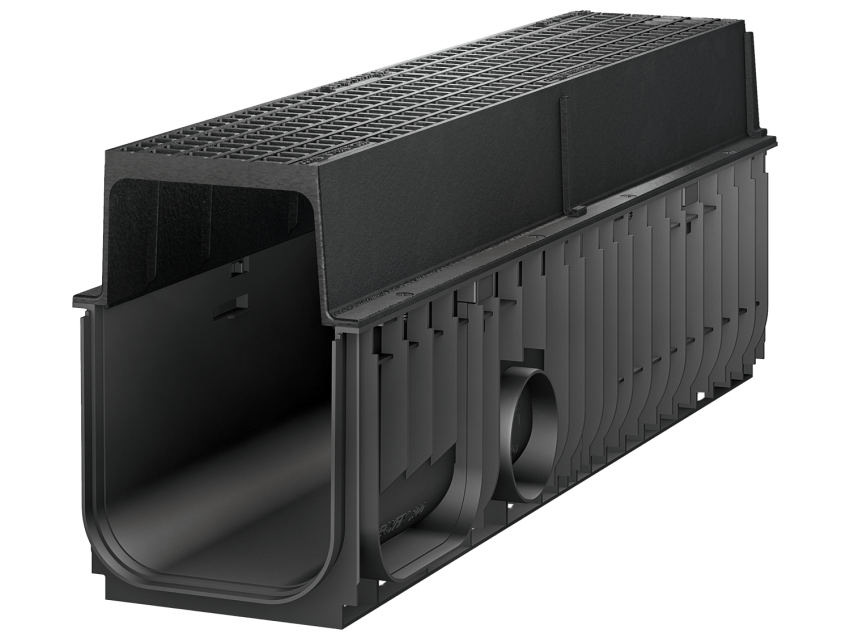

RECYFIX TRAFFIC GUGIBLOC channel made of PP and robust grating made of spherodial ductile iron
Trash box made of fibre reinforced concret with access cover to pipe connection, boltless locking system SIDE-LOCK and GUGI-Ductile iron mesh grating
End cap closed
End caps with outlet
