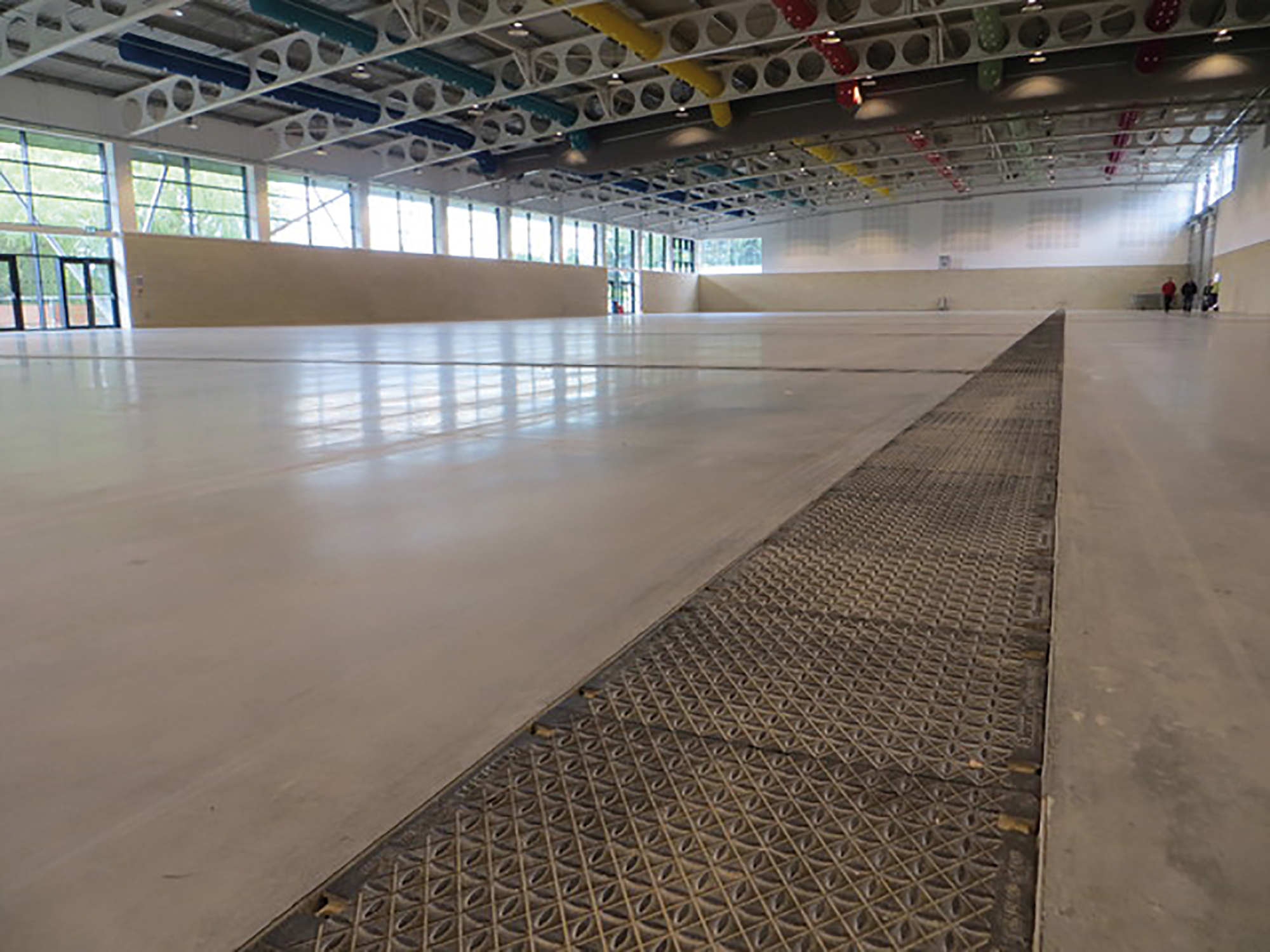

SERVICE CHANNEL | Industry & exhibition

IDEAL FOR: applications for laying cables and lines in the ground which can be easily accessed at all times and the surfaces of which are driven on with heavy wheel loads.
Can't interpred 302-305 Can't interpred 310Can't interpred 306-309 Can't interpred 311
%s



YOUR BENEFITS WITH SERVICE CHANNEL FASERFIX KS

HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK

= Cost savings | Quality assured
SHOW DETAILS

HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK

  • 20 mm x 20 mm angle housing and inlaying grating
  • extremely stable connection between steel angle housing and concrete channel body
  • 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
  • extra protection against lateral movement
  • 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
  • replace and insert the grating without any special tool a screwdriver is enough
= Cost savings | Quality assured

HIGH STABILITY

= Performance assured | Longevity
SHOW DETAILS

HIGH STABILITY

  • maximum lateral stability
  • extra thick wall thickness compared to many competitor products, for additional safety in extreme situations
  • installationforasphaltedsurfaces up to class E 600, without concrete stretcher
= Performance assured | Longevity

HIGH-GRADE MATERIAL

= Longevity | Quality assured
SHOW DETAILS

HIGH-GRADE MATERIAL

  • ”Made in Germany”
  • maximum stability due to fibre reinforced concrete (polypropylene fibres) with low weight
  • strong adhesion on foundation concrete (same coefficient)
  • installation without cover possible
  • fire resistance class A1 (non-flammable) according to DIN 4102
= Longevity | Quality assured


UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS

= Design Flexibility | Performance assured
SHOW DETAILS

UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS

  • high-QualityKTL-coating
  • anti-slip feature
  • extremely durable
  • easy opening and closing of the cover due to boltless locking system SIDE-LOCK
  • various covers: closed, with opening for cable outlet
= Design Flexibility | Performance assured

OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING

= Design Flexibility
SHOW DETAILS

OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING

  • KTL-coated
  • easy opening and closing of the cable inlet and outlet
= Design Flexibility

LARGE, CLEAR CROSS-SECTION

= Design Flexibility
SHOW DETAILS

LARGE, CLEAR CROSS-SECTION

  • storage space for cables and wires
  • optional on two levels (see cable routing system accessories)
= Design Flexibility

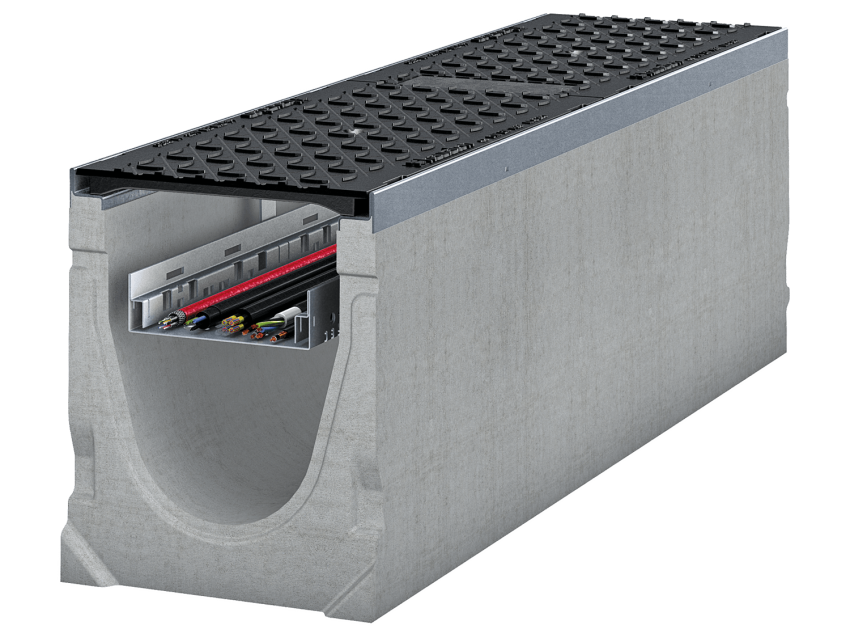

OPTIONAL CABLE-ROUTING SYSTEM

= Design Flexibility
SHOW DETAILS

OPTIONAL CABLE-ROUTING SYSTEM

  • for guiding cables and wires in an elevated position (see cable routing system accessories)
  • easier laying and accessibility of cables and lines
= Design Flexibility

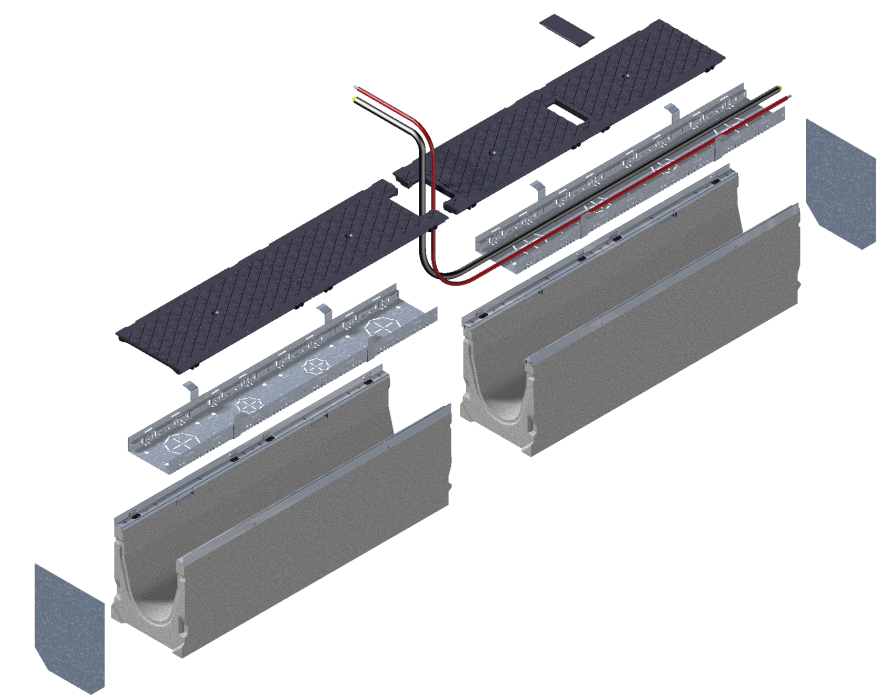

THE SYSTEM IN DETAIL

%s

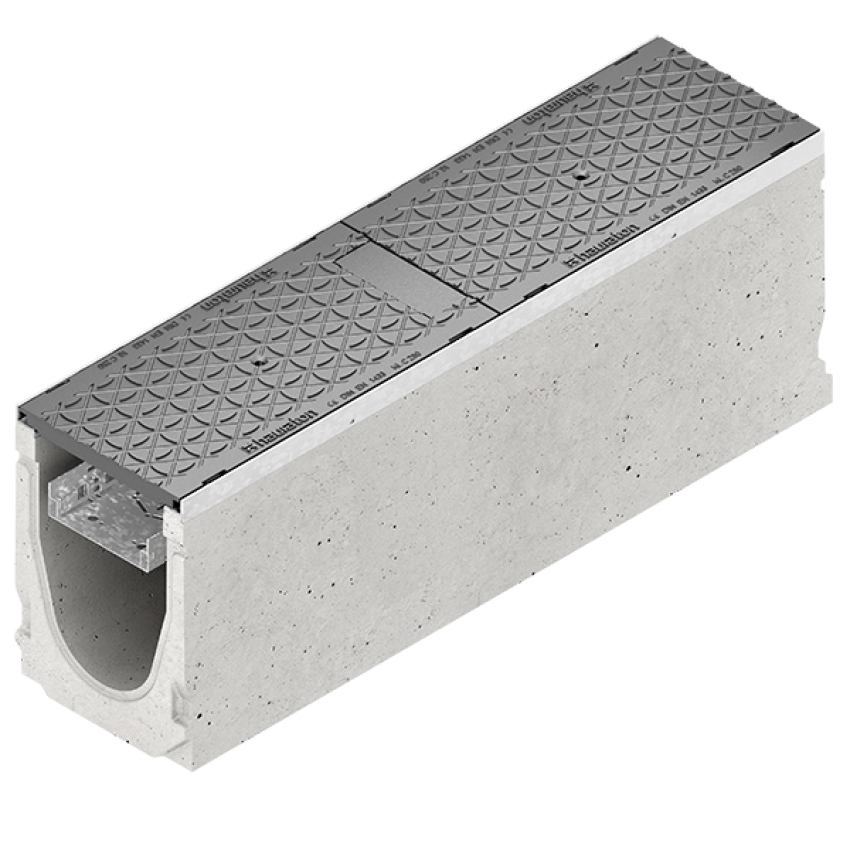

Channels made of fibre reinforced concrete, according DIN V 19580 / EN 1433, CE-conform with safety joint, steel angle housings and boltless locking system SIDE-LOCK with groove and tongue connection for exact installation
Ductile iron cover, with anti-slip surface , KTL-coated, highly resistant
Ductile iron cover with opening for cables, anti-slip surface , KTL-coated, highly resistant, can be combined with the ductile iron cover
Cable routing system galvanised for laying various media and cables
Cover for cable opening for ductile iron cover, black, KTL-coated
End cap without outlet, galvanised
