DACHFIX STEEL

Regulation-compliant drainage for facades, flat roofs & balconies.

Your benefits with DACHFIX STEEL

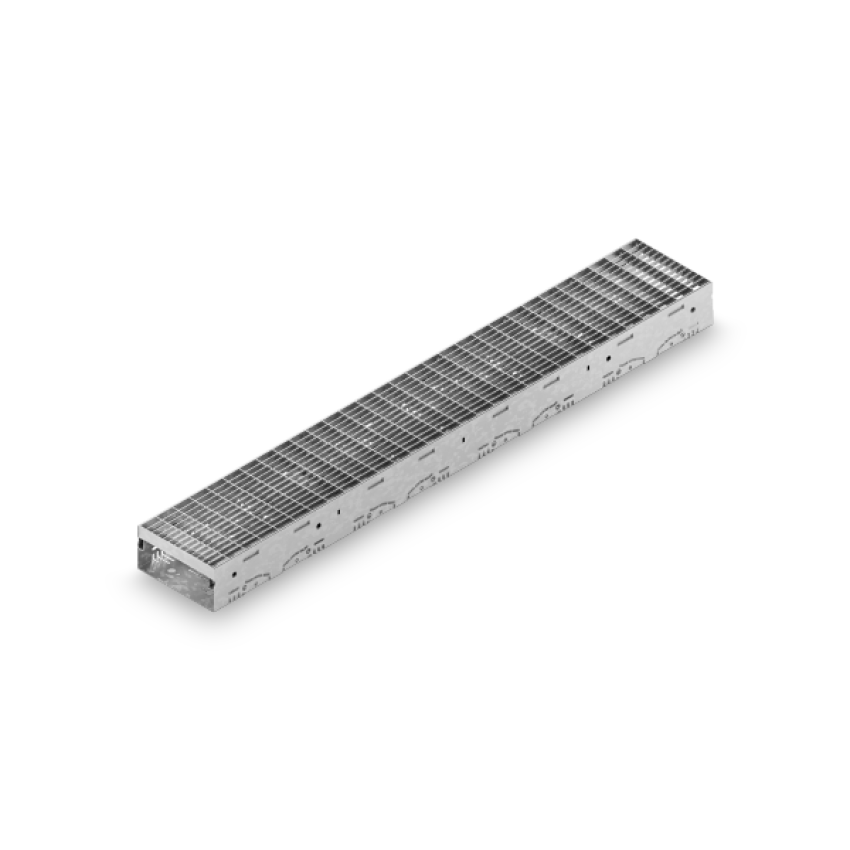

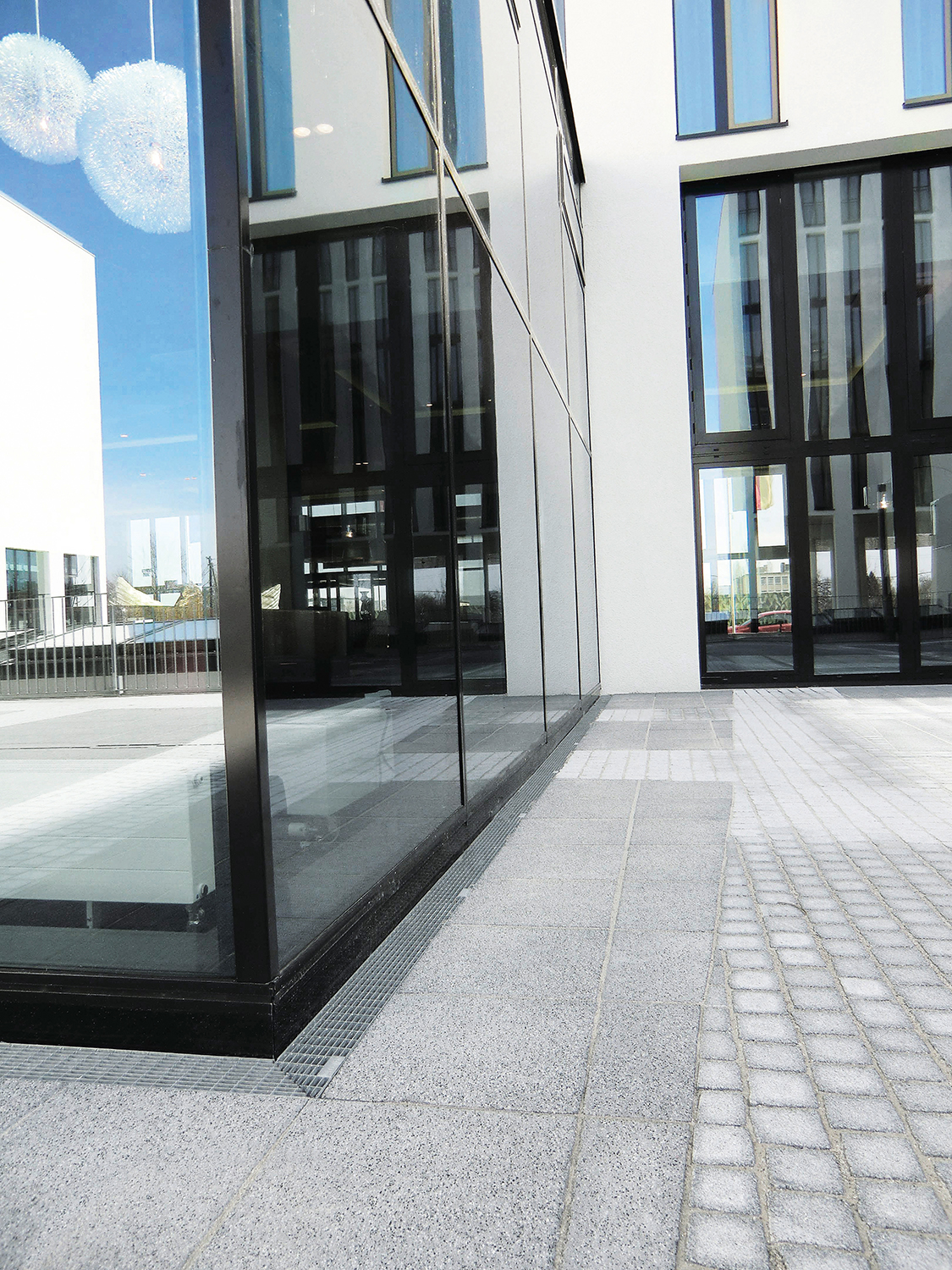

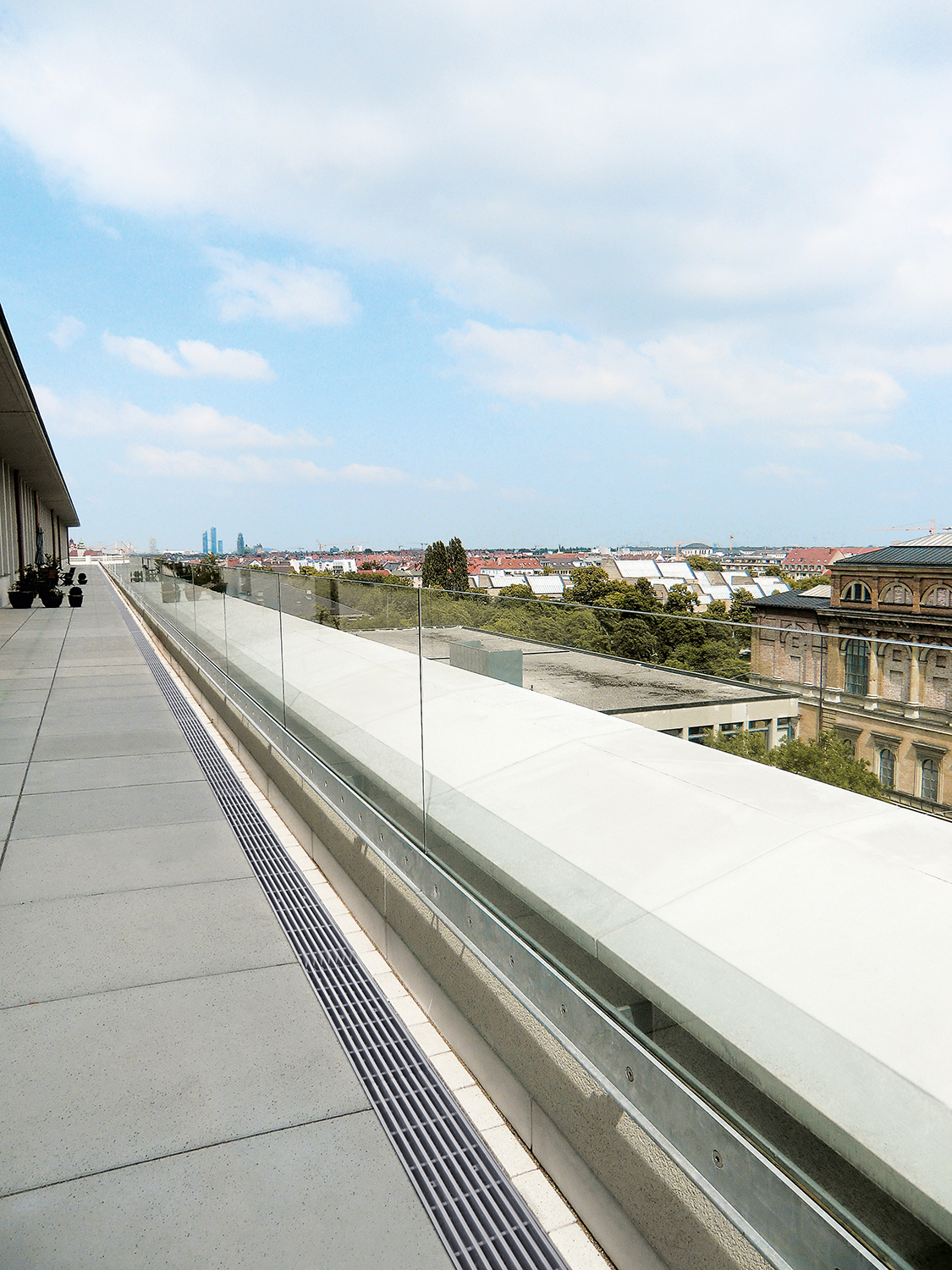

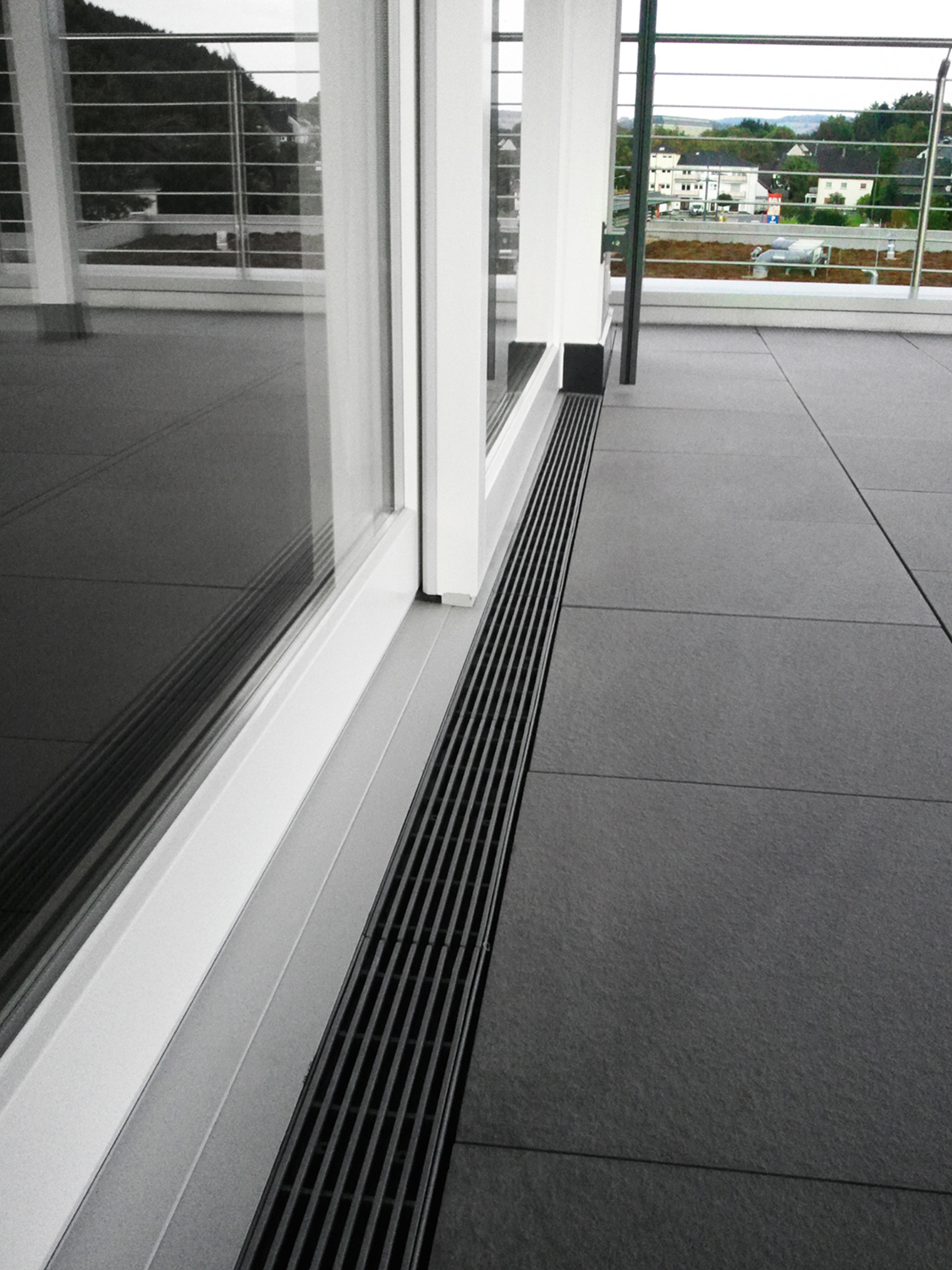

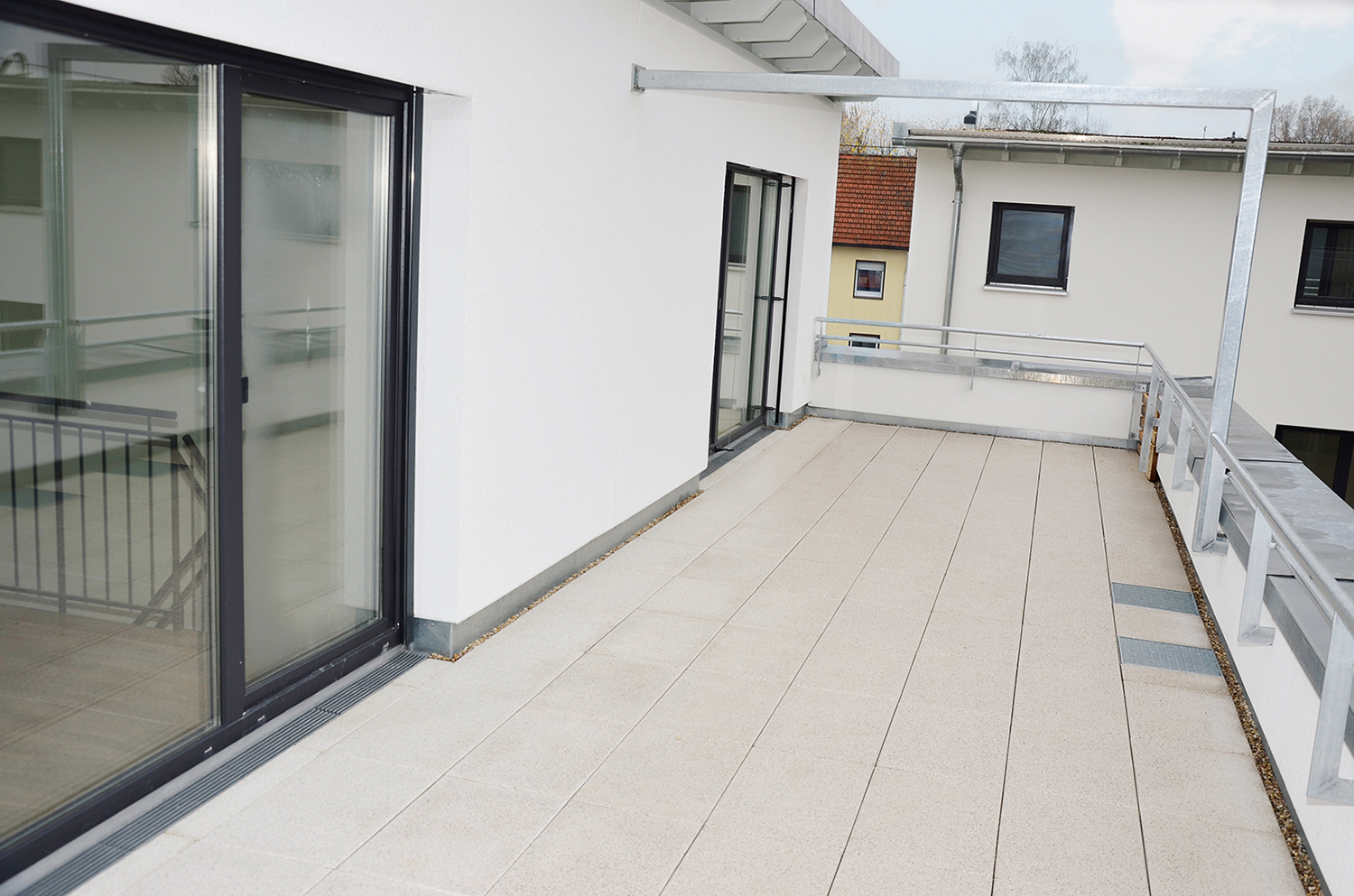

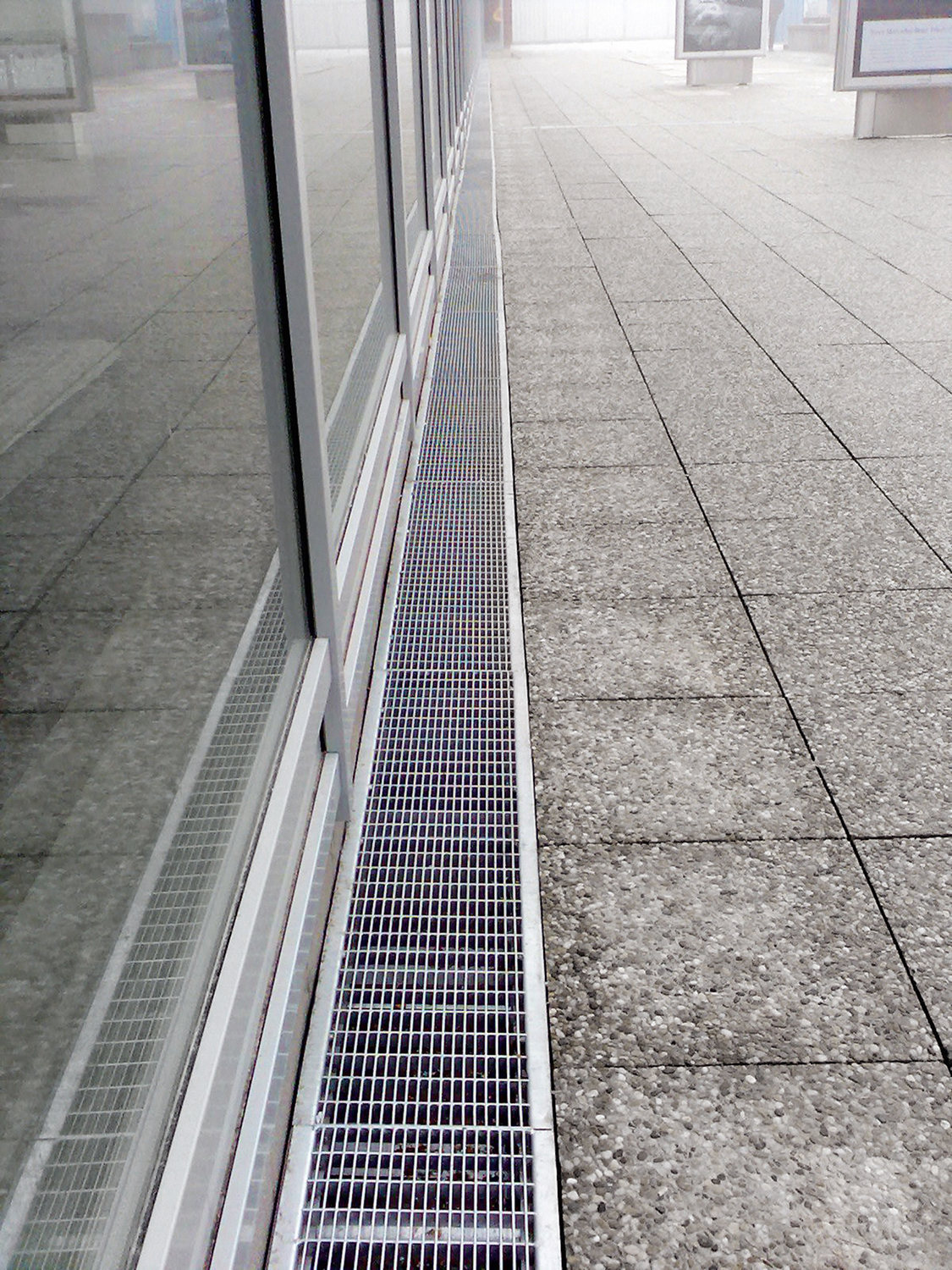

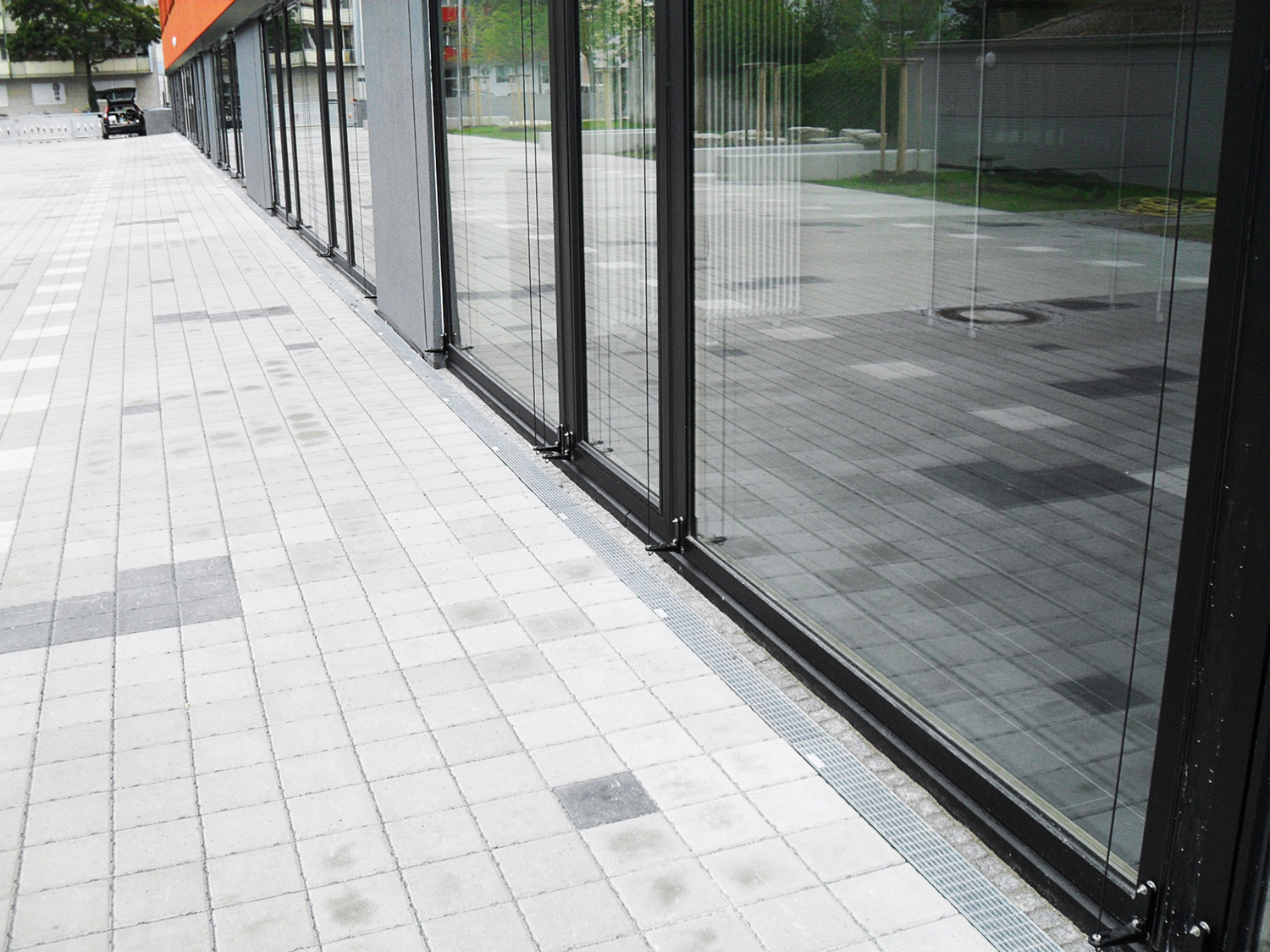

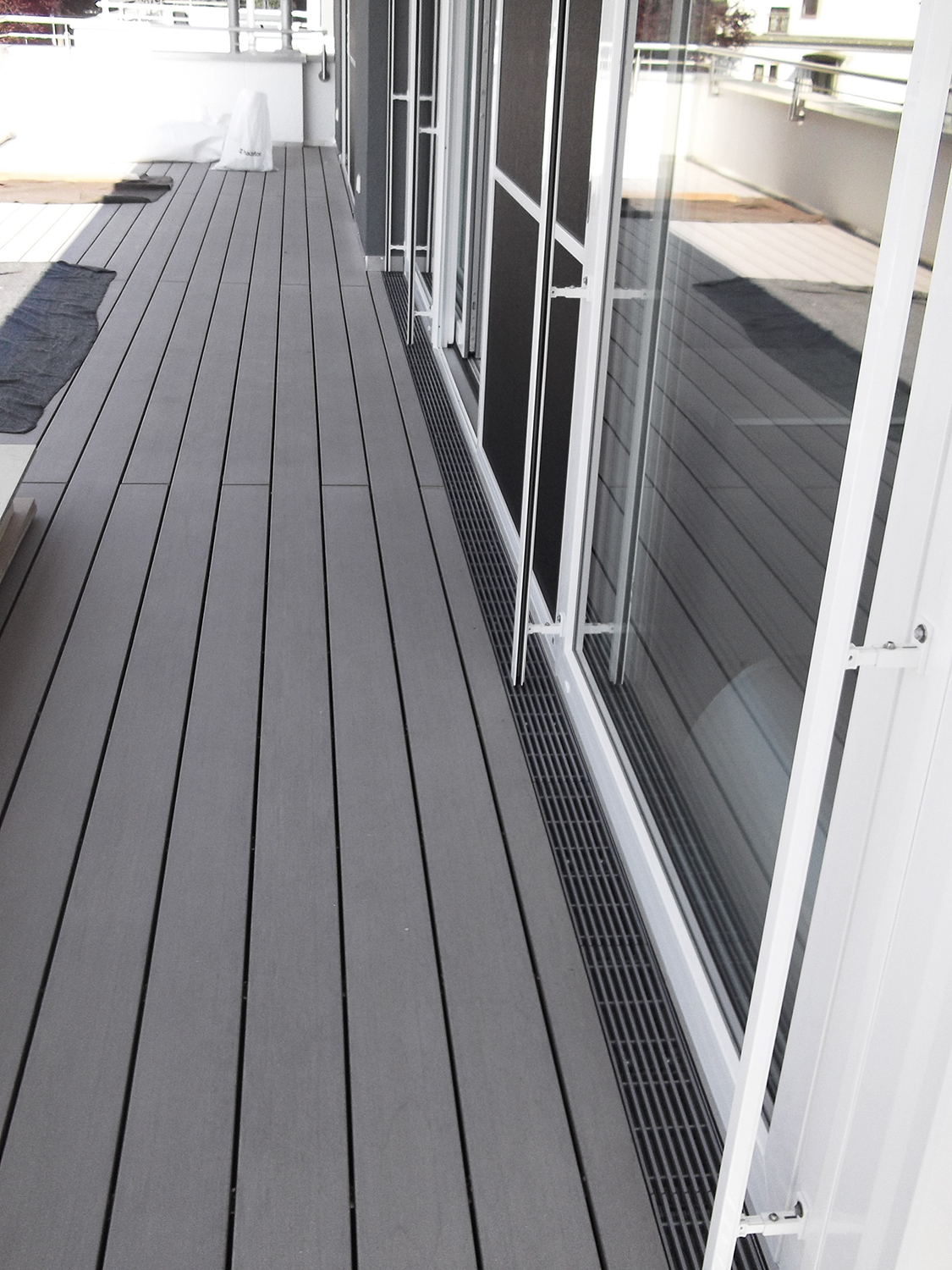

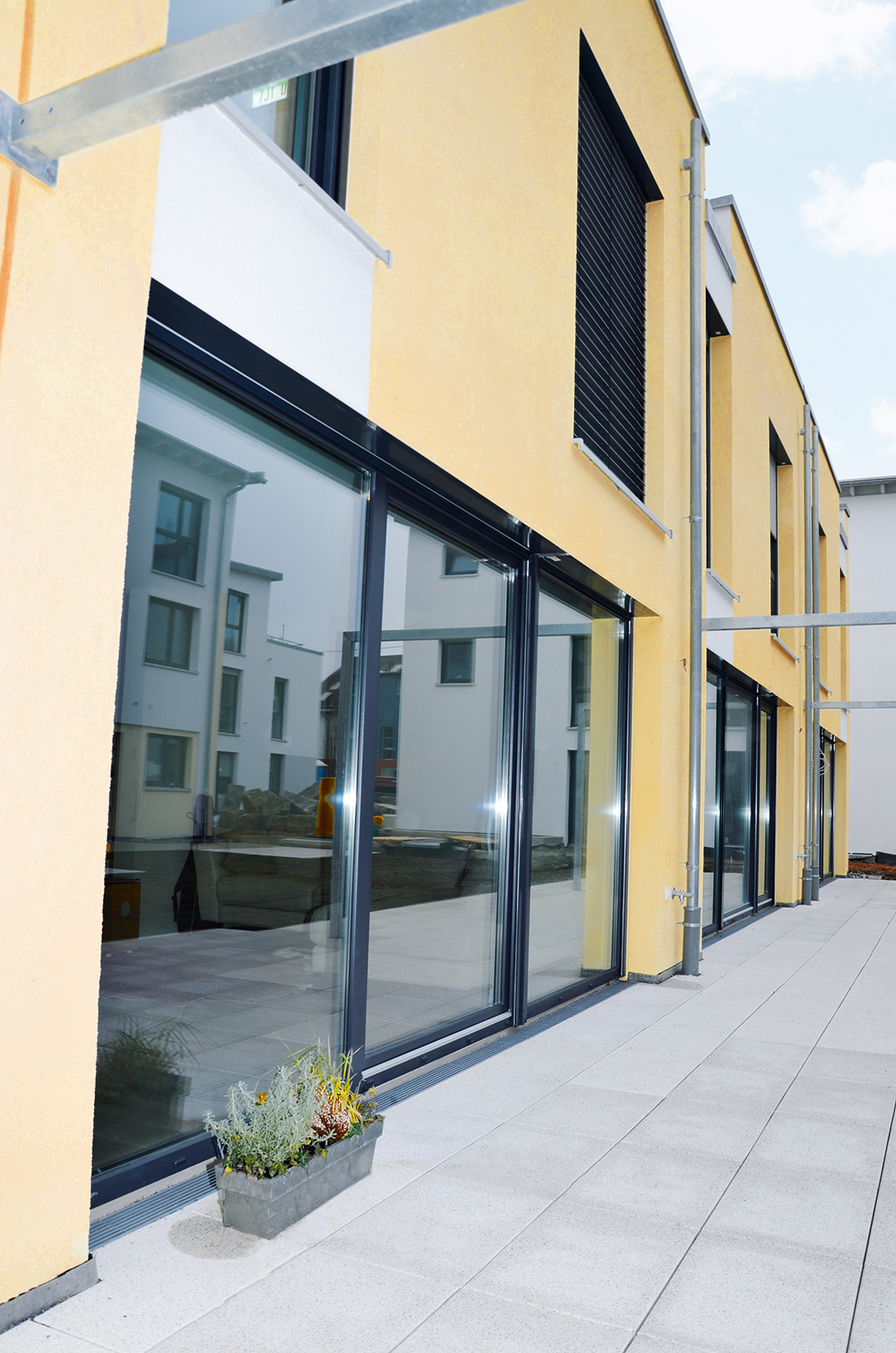

The DACHFIX STEEL channels have been specially developed for reliable and safe drainage of façades, flat roofs, balconies and roof terraces. The stable, corrosion-protected drainage channels made of galvanised steel or stainless steel permanently protect buildings from ponding water while ensuring accessible entrances and exits.

The systems meet high architectural demands with a range of grating designs: slotted, mesh, perforated or longitudinal and materials in composite, galvanised or stainless steel. They provide reliable and secure barrier-free threshold drainage and comply with the design principles of accessible building construction according to DIN 18040.

  • Large channel range with different construction widths (115-255 mm) and heights (45-150 mm)
  • Toggle system for easy connection of the channel elements and optional screwing of the grating
  • Simple connection options via pre-stamped drainage points via drain box for underbuilt soffit areas
  • Drain box outlet in substructure; vertical or horizontal connection via cross-intersection channel to DACHFIX POINT
  • Pre-perforated cut-outs DN/OD 75 and DN/OD 110 for various connection options
  • Easy accessibility for mobility aids and pushchairs
  • Unique end cap that can easily be fixed using a clip function
  • Practical height adjustment with four set screws for easy alignment on uneven surfaces

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.

























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.


























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.


























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.


























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.

Show descriptions Hide descriptions

End cap for channel opening and end with clip-function for secure locking

Optional height adjustment for all widths and heights

Optimal wall anchor function (4x per linear meter)

Connection option cross-intersection (4x per side)

KG sheet

Transition piece for screw socket

Screw socket

DACHFIX POINT frame element type 150

DACHFIX POINT frame element type 55 and type 70

Channel made of galvanized steel, stainless steel, in different widths and heights with preperforated punch outs DN/OD 75 and DN/OD 110 for optimal connection possibility

Various grating options, for example slotted grating, mesh grating, perforated grating and longitudinal grating, in these materials: recycled composite, galvanized steel, stainless steel

Grating options DACHFIX POINT, e.g. mesh grating, longitudinal grating

Screw socket for connection to drainbox, also optional for connection in the channel

Cross-intersection

Locking system for easy connection of channel unit or optional screw fastening of grating, upgradeable at any time

DACHFIX drain box made of galvanized steel or stainless steel, for connections in insulated reveal areas

Grating options for DACHFIX drain box, for example slotted grating, mesh gratings, longitudinal slot grating,

Channels made of galvanised steel, stainless steel or PP with a fix height, with or without height adjustment, big lengths for efficient installation

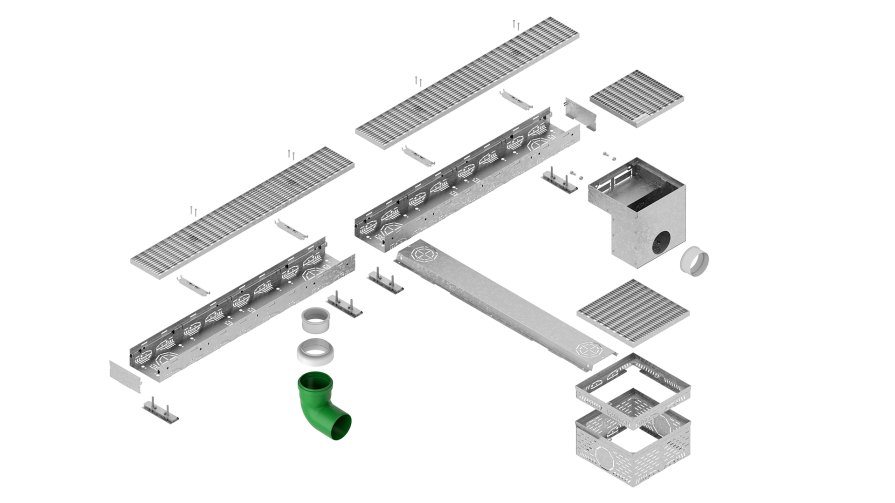

System components
DACHFIX STEEL

Unique box design: The DACHFIX drain box

DACHFIX drain box product visualisation

In the case of underbuilt areas, reveals are provided with thermal insulation which make drainage channels with low construction heights necessary. In this case, there is no possibility for a connection (vertical or horizontal).

The DACHFIX drain box sits on top of the protruding insulation board to provide a positive connection to the channel and carry water to a discharge point beyond the structure; with the option for vertical or horizontal pipe connection at least 15 cm lower than the channel invert.

  • Enables a vertical or horizontal connection in underbuilt areas (soffit, thermal insulation)

  • Can be installed with 25 x 25 cm standard tiles without being cut

  • 2 drain box designs manufactured from galvanised or stainless steel compatible with all DACHFIX STEEL channels

  • Matching gratings provide a uniform appearance with DACHFIX STEEL channels (slotted, mesh, longitudinal or paved)
