Slotted Channel FLAT

For squares and surfaces with high aesthetic demands in flat installation situations.

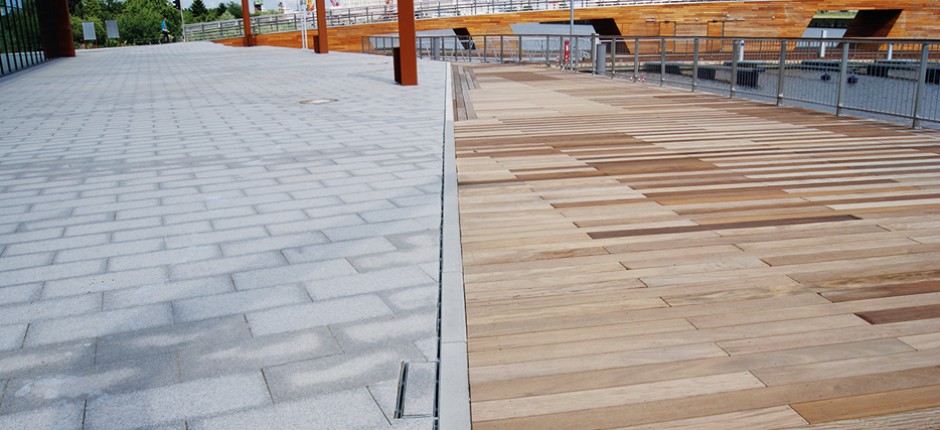

Referenz SCHLITZRINNEzoom

The new product range Slotted Channel FLAT is especially designed for the drainage of squares and areas in the surroundings of architecturally demanding areas.



Product range development based on years of experience

The development of the product range is based on many years of experience in the construction of slotted channels and the analysis of individual customer requirements. Experience has shown, for example, that areas where only low installation heights are available pose special challenges for those responsible for projects with slotted channel applications.

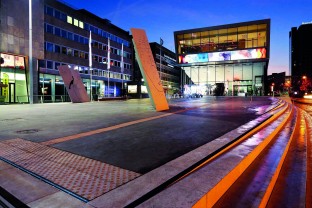

Football Museum, Dortmund, Germanyzoom
Football Museum, Dortmund, Germany

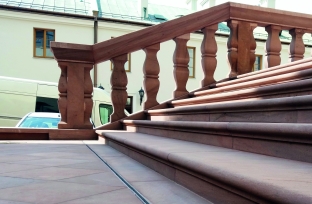

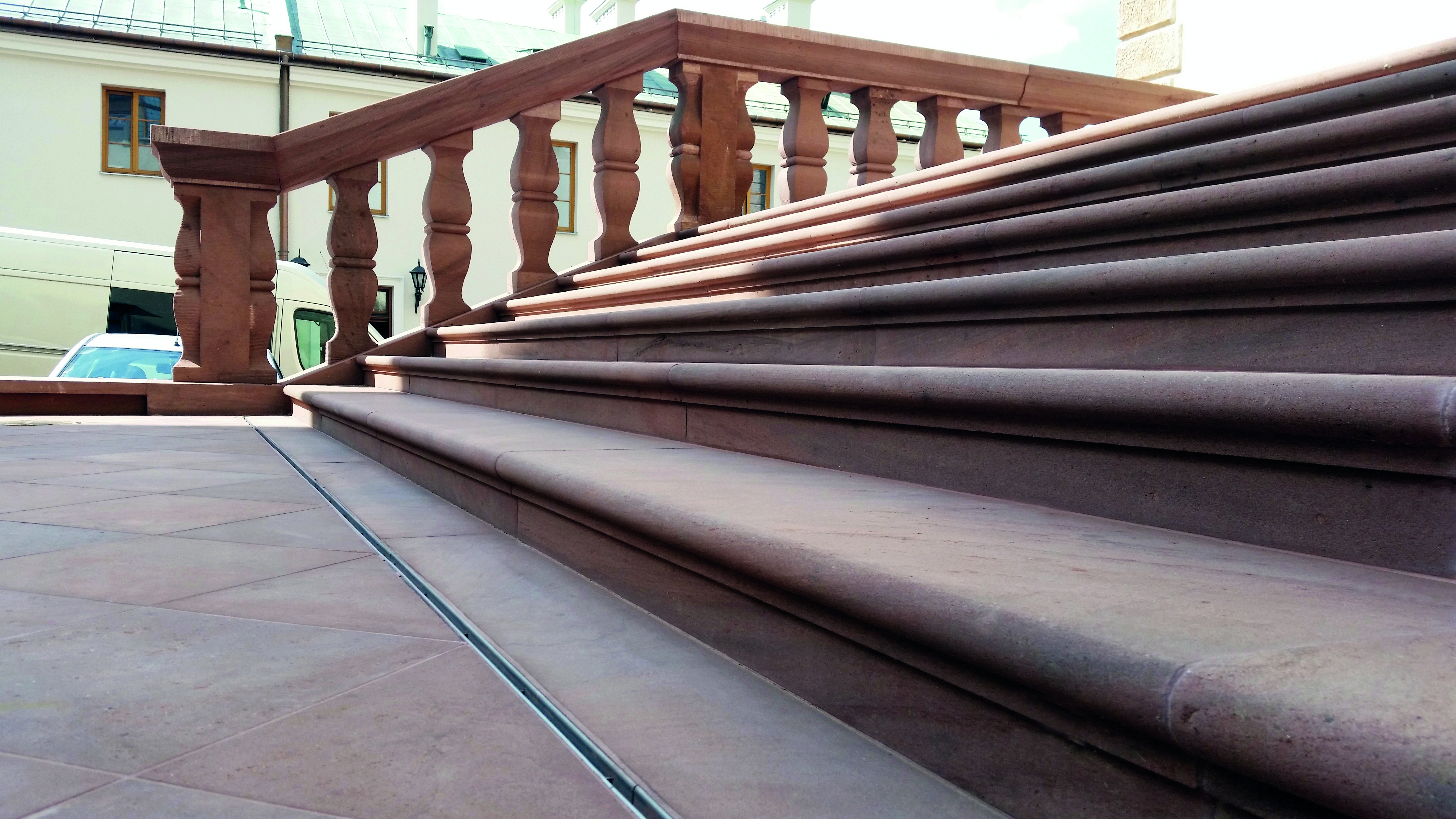

Entrance Bishop's Palace, Malopolska Voivodeship, Polandzoom
Entrance Bishop's Palace, Malopolska Voivodeship, Poland

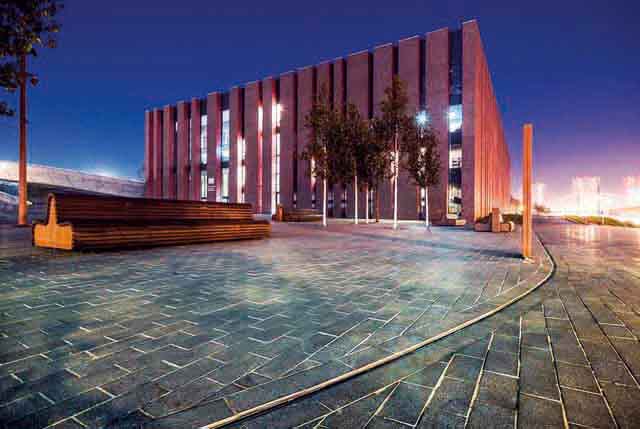

Concert Hall Nospr, Katowice, Polandzoom
Concert Hall Nospr, Katowice, Poland



Safe drainage of surface water or infiltration directly on site

The monolithic slotted channel range offers channels made of galvanised and stainless steel, each with two different neck heights. The requirements of construction projects are often very different: The closed channel bodies drain away collected water directly and are normally connected to the sewer. Perforated channel bodies are available for areas where surface water can be seeped away directly on site. If required, both variations can be combined very easily. Thus, different functions – namely infiltration as well as drainage – can be implemented in one channel run.

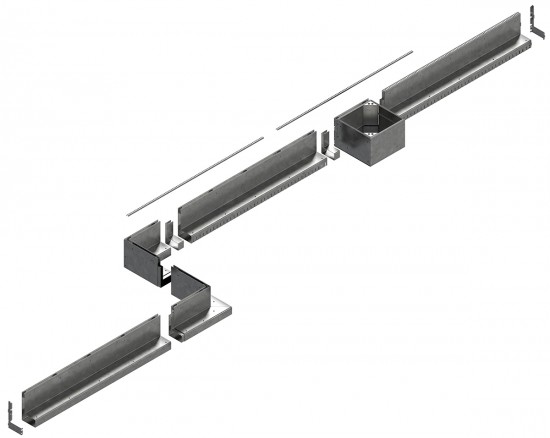

System overview Slotted Channel FLATzoom
System overview Slotted Channel FLAT


Clever accessories complete the system

Connector

Guarantees a line that is as straight as an arrow. Meanwhile, the connecting element secures the channels against movement so that they are permanently fixed in the desired position.



Inspection box

In order to carry out cleaning and maintenance work on the channel system, the access box provides the necessary access. At the same time, a vertical connection to the drainage pipe can be established via the box. The removeable cover can be filled with the surrounding surface covering. The access box thus fits inconspicuously into the areas to be drained.



Sludge trap inlay

Keeps coarse dirt away and reduces the slot width for pedestrian areas.



End cap

The channel is securely closed off with the end cap. In this way, the penetration of bedding material is safely prevented.



Corner element

The elements of the inside and outside corners each have an angle of 90° and are often used for the continuation of a channel run around buildings. The short leg length is especially advantageous. It is not necessary to shorten the corners, thus making the channel run very flexible.

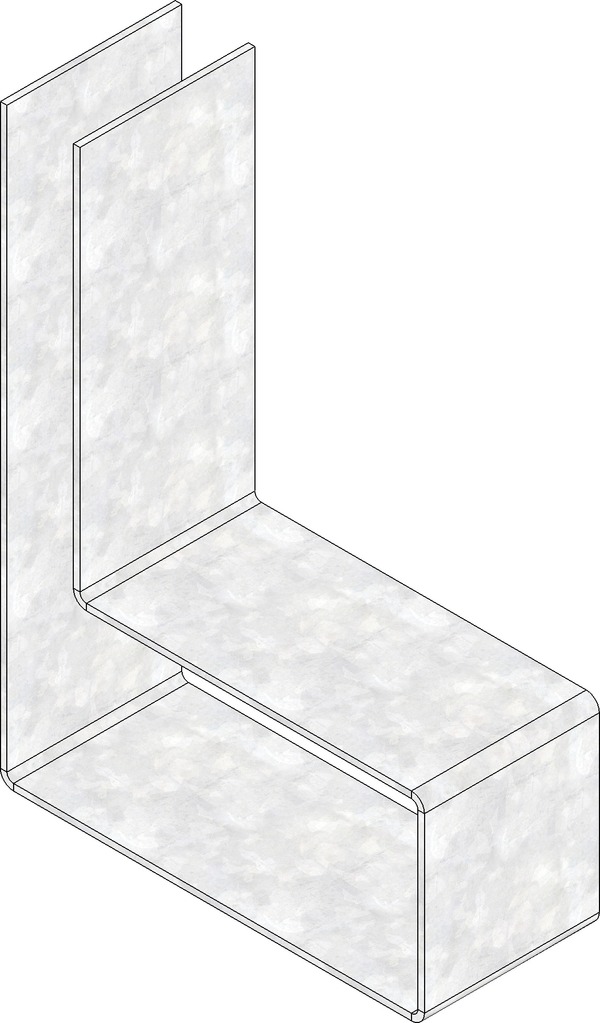

Connectorzoom
Connector

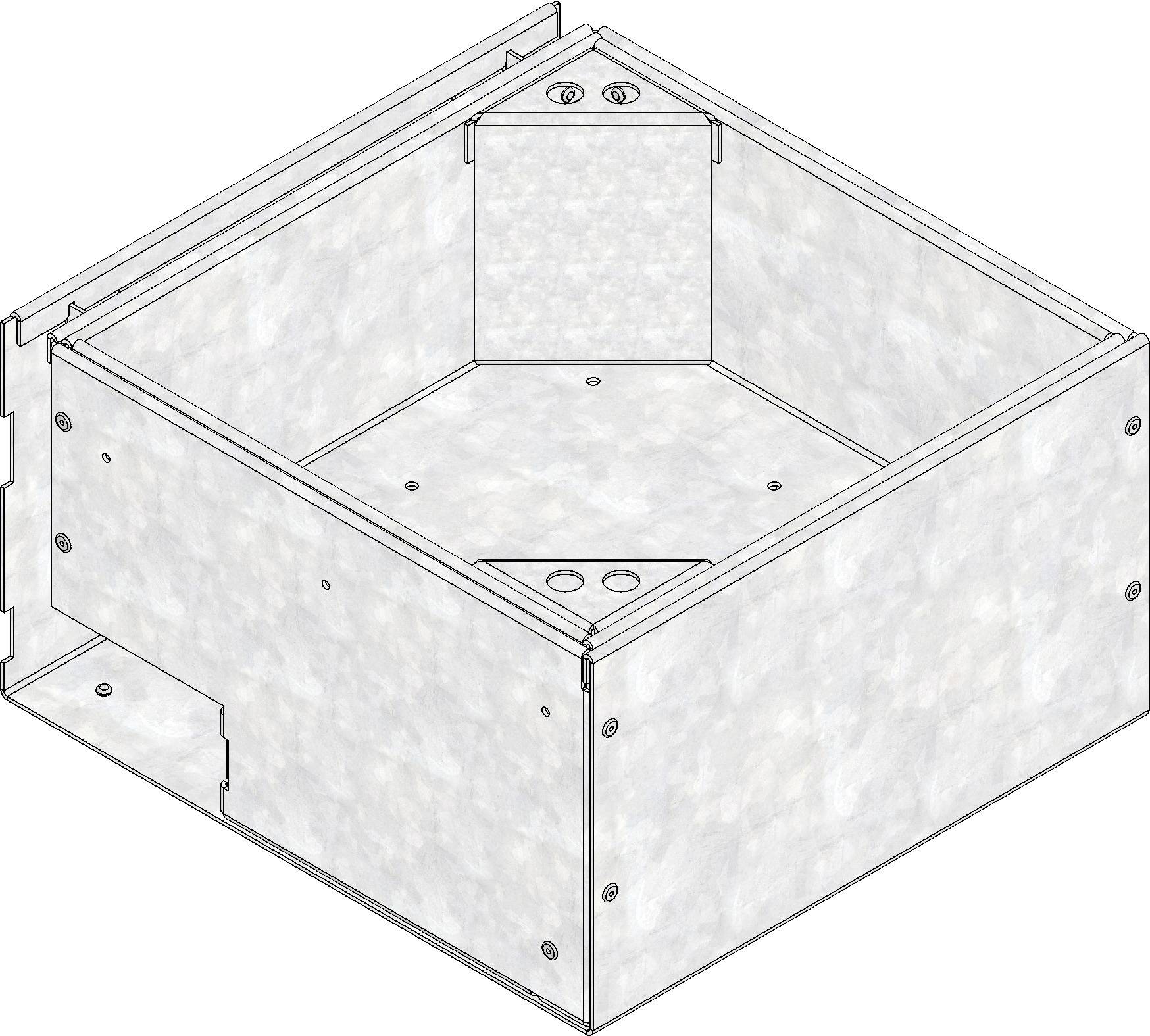

Inspection boxzoom
Inspection box

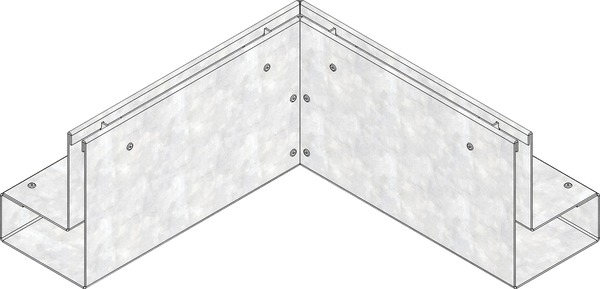

Corner element, outside cornerzoom
Corner element, outside corner
